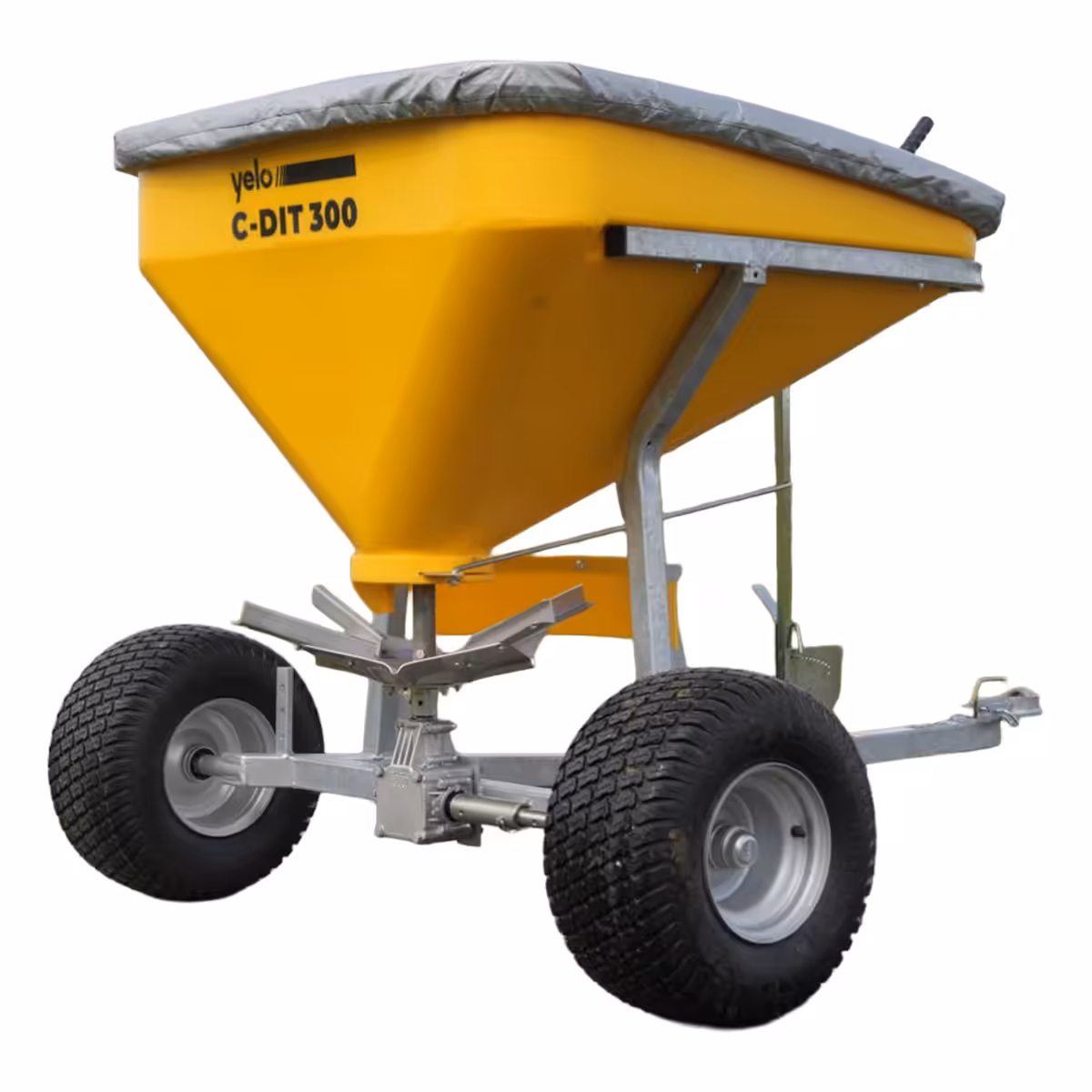

C-DIT 300 Pin Drive
The Yelo 300 Pin Drive Spreader steps things up with a larger 300 litre hopper, giving you more capacity and more productivity in every run. Built to work, it is simple, practical and ready for bigger jobs.

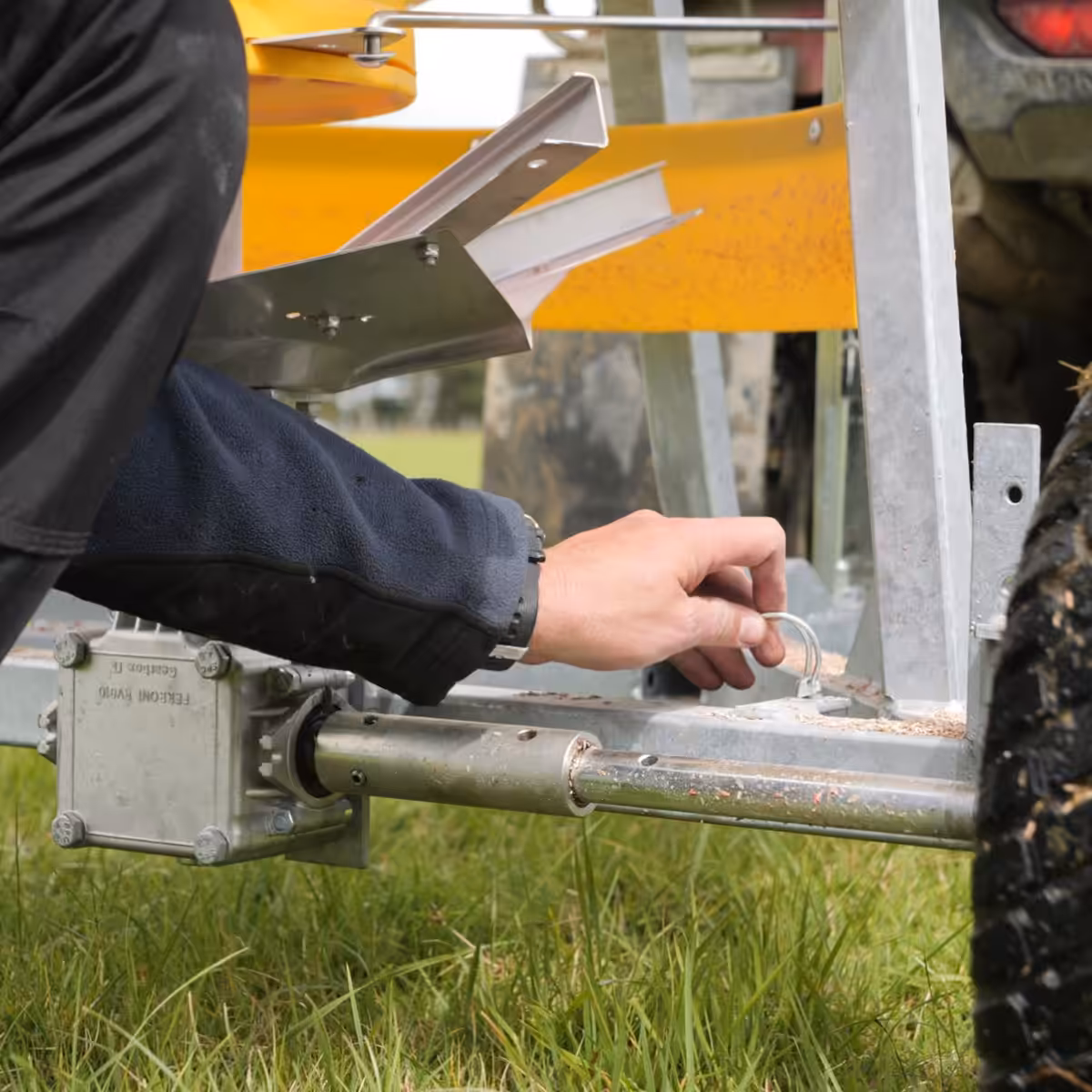

With the easy pin drive system, just hop off, pop the pin in to engage the spinner and start spreading as you drive. It also comes with a waterproof PVC cover to keep your load protected in changing conditions.
The easy pull open and shut lever gives you nine application rate settings, so you can quickly dial in the right spread rate for the job.
An aggressive agitation system keeps fertiliser or seed flowing freely and stops bridging, which is when material links together across the hopper and blocks the flow to the spinner. That means smooth, steady feeding and nice even coverage every pass.
The low sided hopper makes filling easy, while the wide wheel track and low centre of gravity provide stable performance and good control on uneven ground.
Our optional mudguard kit helps keep mud and debris out of the hopper and off the machine, tow vehicle, and operator. A simple addition that helps keep things cleaner when spreading in muddy conditions.
- Suitable for most types of fertiliser and seed
- Easy pull open/shut lever with nine application rate settings
- Spinner with 18m spread width (at 10 kph)
- Applies up to 140 kg/ha (urea at 10 kph)
- Wide wheel track & low centre of gravity for stability on uneven ground
- Aggressive agitation prevents ‘bridging’
- Low sided hopper for easy filling
- Removable pin on drive axle
- 300 litre poly hopper with PVC cover (250kg urea)
- 90kg weight empty
- 1380mm wide wheel track
- Mudguard Kit / Part No 1300 – 6810
Downloads

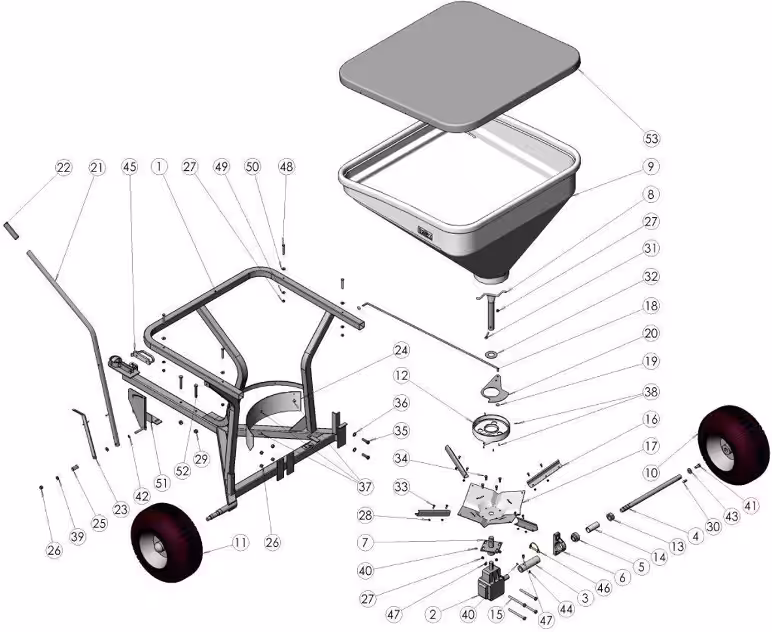

| Item No. | QTY | Part No | Description |
| 1 | 1 | 3500-5600 | Frame-Spreader-CDIT300GT-GL |
| 2 | 1 | 3800-1000 | Gearbox-Ferroni-RV10-Ratio 1 to 2.78 |
| 3 | 1 | 5200-5200 | Machined-Housing-Drive Axle-INEX300/INEX130-ZP |
| 4 | 1 | 5200-6500 | Machined-Shaft-Axle-CDIT300GT-ZP |
| 5 | 1 | 1140-1200 | Bearing-Ball-Pillow Block-Drive Axle-Spreaders |
| 6 | 1 | 1140-4000 | Bearing-Housing-Pillow Block-Drive Axle-Spreaders |
| 7 | 1 | 8200-5200 | Spinner-Mount-CDIT300/400/INEX300-ZP |
| 8 | 1 | 1036-8240 | Agitator-Spreader-CDIT300/400-In-Ex300/400-SS |
| 9 | 1 | 7500-2120 | Rota-Hopper-Spreader 300 -MDPE-Yelo |
| 10 | 1 | 9200-8900 | Wheel-Turf-Keyed-18x950x8-4 Ply |
| 11 | 1 | 9200-8700 | Wheel-Turf-Bearing-18x950x8-4 Ply |
| 12 | 1 | 7500-2795 | Rota-Spout-Spreader-165/300/400-Natural-MDPE |
| 13 | 1 | 2150-0025 | Collar-Shaft-ID25-ZP |
| 14 | 1 | 2250-7940 | Cover-Shaft-Drive Axle-77mm Long-Spreader 300-PVC |
| 15 | 4 | 2840-1120 | Fastener-Bolt&Nut-Hex-8.8 Grade-M10x120-ZP |
| 16 | 4 | 6500-8950 | Profiled-Vane-Spinner-Spreader-CDIT300/400-Galv |
| 17 | 1 | 8200-2100 | Spinner-Disc-CDIT300/400/1300 |
| 18 | 1 | 5050-7940 | Linkage-Shutter-In-Ex Spreader 300-ZP |
| 19 | 2 | 3230-0008 | Fastener-Retainer Cap-Starlock-8mm-Nickle Plated |
| 20 | 1 | 6500-7770 | Profiled-Shutter-CDIT300/400 |
| 21 | 1 | 4050-1600 | Handle-In-Ex Spreader 300-ZP |
| 22 | 1 | 3865-3800 | Grip-Handle-7/8″-PVC-Black-Plastic |
| 23 | 1 | 4050-4200 | Handle-Indicator-In-Ex 300-ZP |
| 24 | 1 | 7970-8100 | Shroud-Spreader 300-MDPE-Yelo |
| 25 | 1 | 8250-1800 | Spring-Compression-Crinkle Plate-ZP |
| 26 | 5 | 3170-0010 | Fastener-Nut-Nyloc-M10-ZP |
| 27 | 9 | 3170-0008 | Fastener-Nut-Nyloc-M8-ZP |
| 28 | 8 | 3170-0006 | Fastener-Nut-Nyloc-M6-ZP |
| 29 | 4 | 3170-0012 | Fastener-Nut-Nyloc-M12-ZP |
| 30 | 1 | 5200-6300 | Machined-Key-8×8-Ground Drive Spreaders |
| 31 | 1 | 3290-0850 | Fastener-Set Screw-Hex-8.8 Grade-M8x50-ZP |
| 32 | 1 | 6500-9000 | Profiled-Washer-Spinner Shaft-34.9x67x2mm-Stainless 304 |
| 33 | 8 | 3290-0616 | Fastener-Set Screw-Hex-8.8 Grade-M6x16-ZP |
| 34 | 4 | 3290-0820 | Fastener-Set Screw-Hex-8.8 Grade-M8x20-ZP |
| 35 | 2 | 3290-1240 | Fastener-Set Screw-Hex-8.8 Grade-M12x40-ZP |
| 36 | 2 | 3310-6012 | Fastener-Washer-Flat-M12-ZP |
| 37 | 3 | 3240-0018 | Fastener-Rivet-Blind-Truss Head-3/16x18mm-Aluminium |
| 38 | 6 | 3270-8012 | Fastener-Self Tap-Screw-CSK-8Gx1/2″-Pozi-Stainless |
| 39 | 2 | 3310-6010 | Fastener-Washer-Flat-M10-ZP |
| 40 | 2 | 3010-0810 | Fastener-Grub Screw-Socket Head-M8x10-Stainless |
| 41 | 1 | 3290-1225 | Fastener-Set Screw-Hex-8.8 Grade-M12x25-ZP |
| 42 | 1 | 3320-7010 | Fastener-Washer-Shakeproof-External Star-M10-ZP |
| 43 | 1 | 3310-5012 | Fastener-Washer-Flat-Heavy-M12x32x3-Galv |
| 44 | 1 | 5270-0003 | Nipple-Grease-Straight-Short-M6-ZP |
| 45 | 1 | 8800-3800 | Tow-Coupling-Handle-Double Ended-1 78 x 50mm-ZP |
| 46 | 1 | 6100-4860 | Pin-Locking-8x57mm-ZP |
| 47 | 2 | 2890-0812 | Fastener-Cap Head-Allen-Screw-12.9 Grade-M8x12-Black |
| 48 | 4 | 2810-0860 | Fastener-Bolt&Nut-Hex-304 Grade-M8x60-Stainless |
| 49 | 4 | 3310-6008 | Fastener-Washer-Flat-M8-ZP |
| 50 | 4 | 3310-2809 | Fastener-Washer-Flat-M8x22x1.5-Grade 316-Stainless |
| 51 | 1 | 5245-3905 | Mount-Handle-Spreader 300-ZP |
| 52 | 2 | 3290-1275 | Fastener-Set Screw-Hex-8.8 Grade-M12x75-ZP |
| 53 | 1 | 2250-4100 | Cover-Hopper-Silver Fabric-Spreader CDIT300 |
Related Products
Take a look at related products below, from matching accessories through to other models and sizes that may be a better fit.
Frequently Asked Questions
Here are some of the things people often ask about this product. If you’d like more help, your local store can talk it through, or you can get in touch with us directly.
It’s suitable for most fertilisers and seed types, including urea.
The stainless-steel spinner provides an even 18-metre spread for efficient coverage.
With a low centre of gravity and wide 1380 mm wheel track, it offers excellent stability.
The easy pull lever has nine settings, applying up to 140 kg/ha at 10 kph.
The low-sided hopper allows easy filling, and the removable pin on the drive axle simplifies maintenance.
