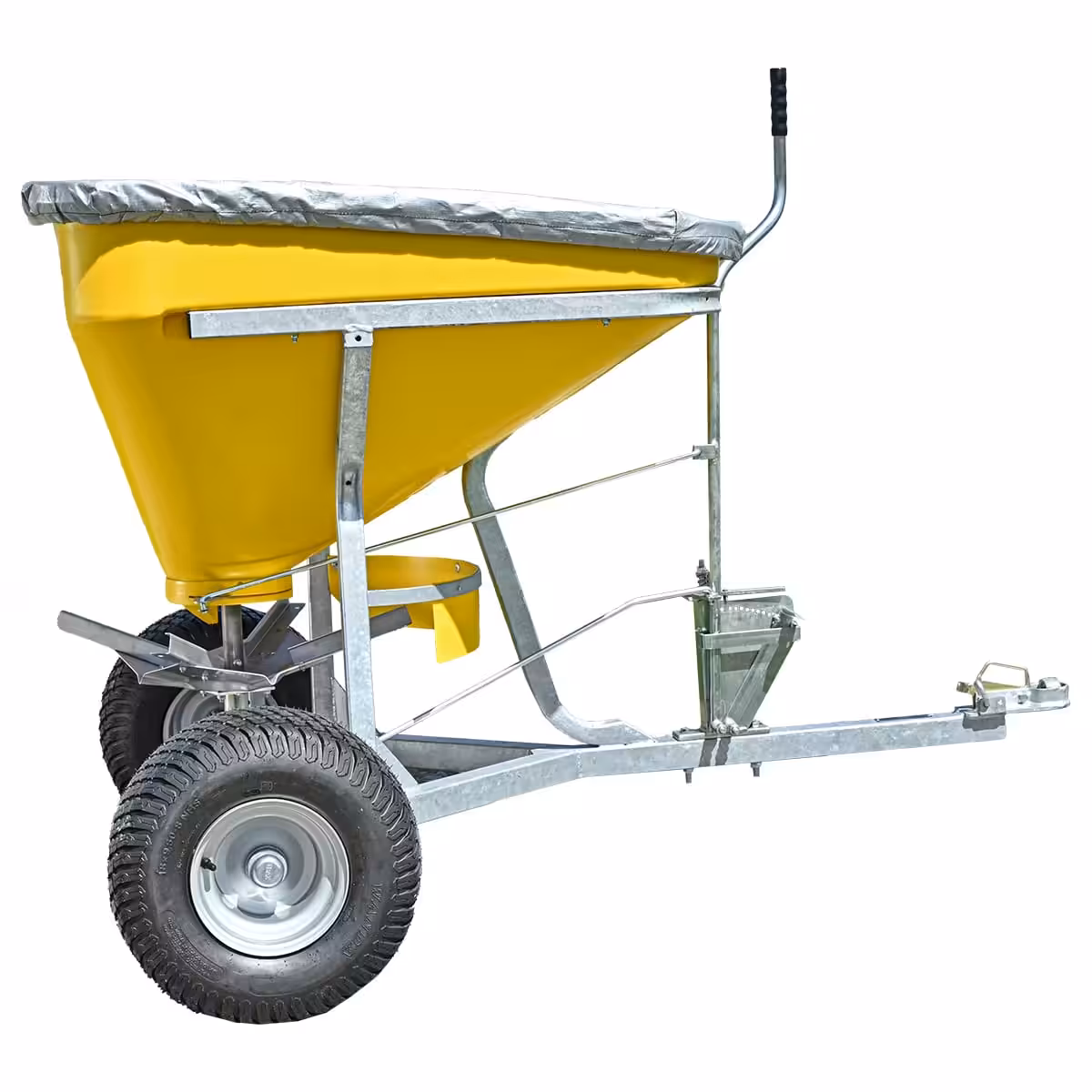

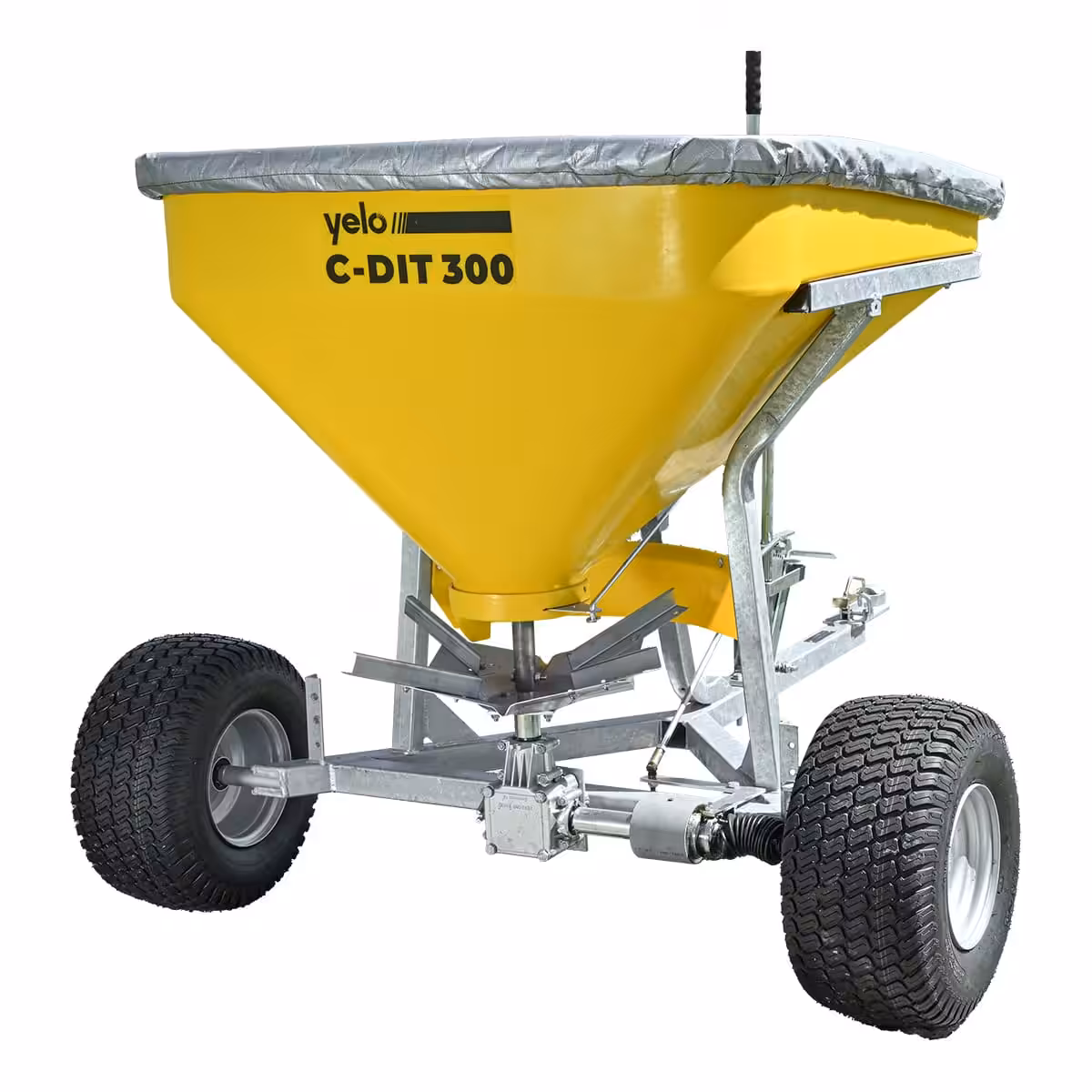

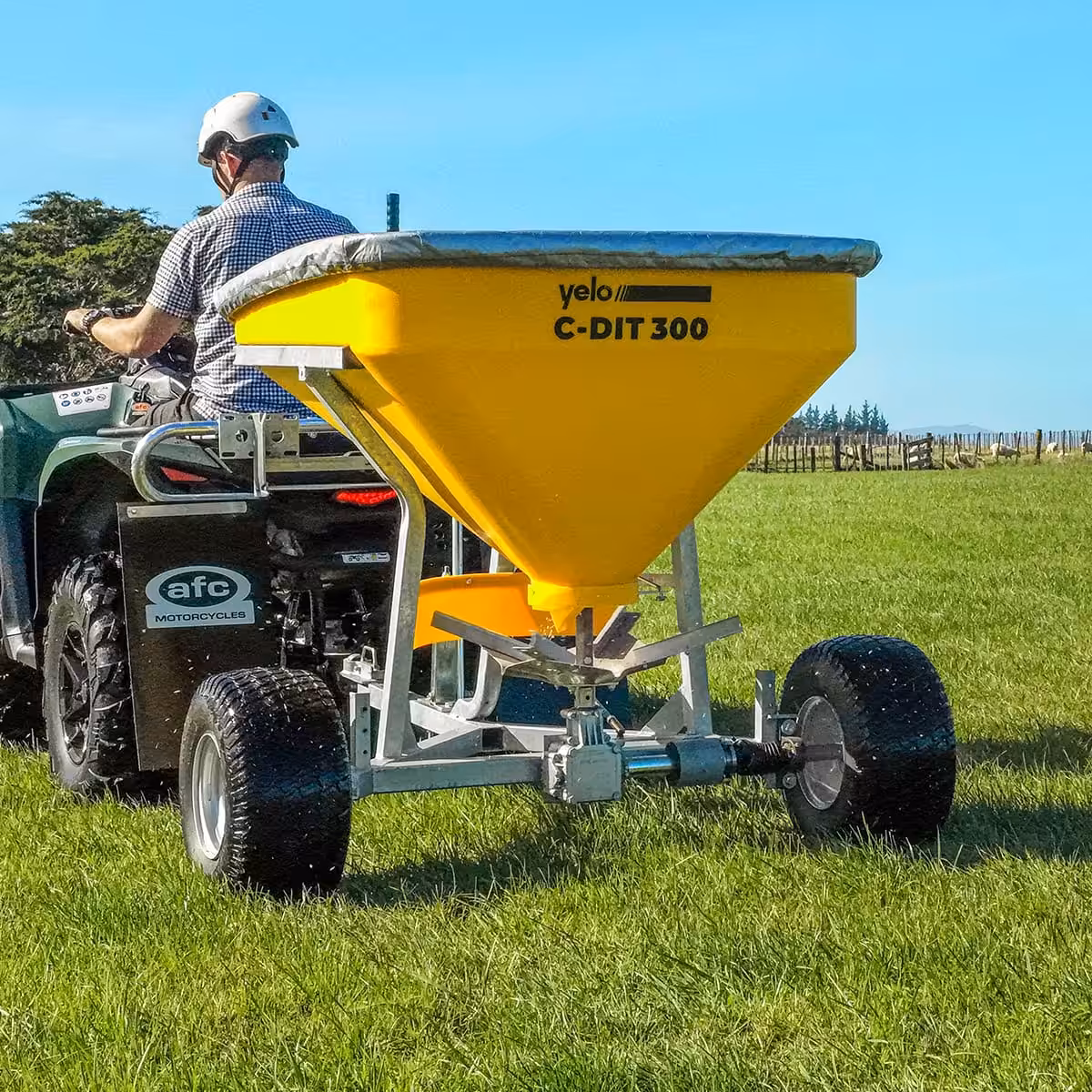

C-DIT 300 Clutch Drive
The Yelo C-DIT 300 Clutch Drive Spreader is built for bigger jobs, with a generous 300 litre poly hopper that holds up to 250 kg of urea. Designed for productivity and ease of use, it is ideal for spreading most types of fertiliser and seed across a wide range of paddock conditions.

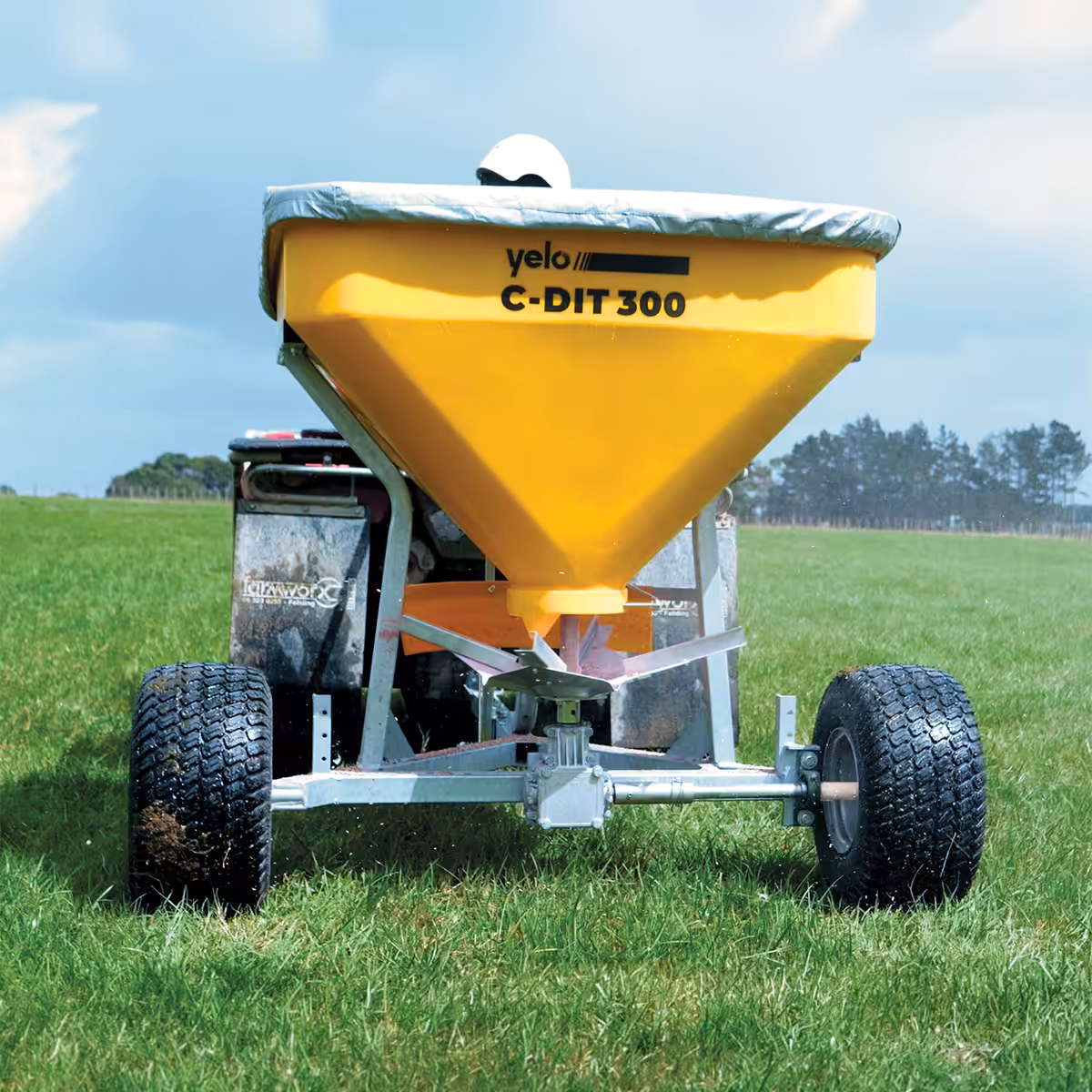

What sets this model apart from the C-DIT 300 Pin Drive is the unique single lever enclosed Dri Clutch system. Operated directly from your quad seat, it allows you to engage or disengage the spinner and open or shut the hopper while on the move. No hopping off, no stopping and starting, just smooth and simple control as you drive.
The spinner delivers up to 18 metres spread width at 10 kph and can apply up to 140 kg per hectare of urea, helping you cover ground efficiently. An aggressive agitation system keeps fertiliser or seed flowing freely and prevents bridging, which is when material links together across the hopper and blocks the flow to the spinner, so you get consistent and even coverage every pass.
With a wide 1380 mm wheel track and low centre of gravity, the C-DIT 300 Clutch Drive offers excellent stability on uneven ground. It also comes fitted with a PVC cover to help keep your load dry and protected when conditions change.
Our optional mudguard kit helps keep mud and debris out of the hopper and off the machine, tow vehicle, and operator. A simple addition that helps keep things cleaner when spreading in muddy conditions.
- Suitable for most types of fertiliser and seed
- Unique single lever enclosed Dri-Clutch for on the move engagement
- Easy pull open/shut lever with nine application rate settings
- Spinner with 18m spread width (at 10 kph)
- Applies up to 140 kg/ha (urea at 10 kph)
- Wide wheel track & low centre of gravity for stability on uneven ground
- Aggressive agitation prevents ‘bridging’
- Low sided hopper for easy filling
- 300 litre poly hopper with PVC cover (250kg urea)
- 92kg weight empty
- 1380mm wide wheel track
- Mudguard Kit / Part No 1300 – 6810
Downloads

| Item No. | QTY | Part No | Description |
| 1 | 1 | 1036-8240 | Agitator-Spreader-CDIT300/400-In-Ex300/400-SS |
| 2 | 1 | 1110-2310 | Ball-End-Internal Thread-M10-Zinc Plated |
| 3 | 1 | 1140-1200 | Bearing-Ball-Pillow Block-Drive Axle-Spreaders |
| 4 | 1 | 1140-4000 | Bearing-Housing-Pillow Block-Drive Axle-Spreaders |
| 5 | 1 | 1280-1600 | Boot-Clutch-Convoluted-CDIT300/400-Rubber |
| 6 | 1 | 1300-3010 | Bracket-Clutch Engager-CDIT300/400GT-ZP |
| 7 | 1 | 1300-6800 | Bracket-Mudguard-CDIT300/400/MM165-LH-GL |
| 8 | 1 | 1300-6801 | Bracket-Mudguard-CDIT300/400/MM165-RH-GL |
| 9 | 1 | 2100-2300 | Clutch-Engager-CDIT400-ZP |
| 10 | 1 | 2100-6000 | Clutch-Pin Engager-CDIT300/400-ZP |
| 11 | 1 | 2150-0025 | Collar-Shaft-ID25-ZP |
| 12 | 1 | 2250-1600 | Cover-Clutch-CDIT300/400-OD 90×92 Long-Grey-PVC |
| 13 | 1 | 2250-4100 | Cover-Hopper-Silver Fabric-Spreader CDIT300 |
| 14 | 1 | 2250-7920 | Cover-Shaft-Drive Axle-90mm Long-CDIT300GT-PVC |
| 15 | 4 | 2810-0860 | Fastener-Bolt&Nut-Hex-304 Grade-M8x60-Stainless |
| 16 | 1 | 2840-1065 | Fastener-Bolt&Nut-Hex-8.8 Grade-M10x65-ZP |
| 17 | 5 | 2840-1120 | Fastener-Bolt&Nut-Hex-8.8 Grade-M10x120-ZP |
| 18 | 2 | 2890-0812 | Fastener-Cap Head-Allen-Screw-12.9 Grade-M8x12-Black |
| 19 | 2 | 2890-0816 | Fastener-Cap Head-Allen-Screw-12.9 Grade-M8x16-Black |
| 20 | 2 | 3010-0810 | Fastener-Grub Screw-Socket Head-M8x10-Stainless |
| 21 | 2 | 3070-0512 | Fastener-Machine-Screw-CSK-M5x12-Phillips-Stainless |
| 22 | 4 | 3075-0820 | Fastener-Set-Screw-Hex-304 Grade-M8x20-Stainless |
| 23 | 4 | 3130-0108 | Fastener-Nut-Nyloc-M8-Stainless Steel |
| 24 | 11 | 3170-0008 | Fastener-Nut-Nyloc-M8-ZP |
| 25 | 8 | 3170-0010 | Fastener-Nut-Nyloc-M10-ZP |
| 26 | 4 | 3170-0012 | Fastener-Nut-Nyloc-M12-ZP |
| 27 | 1 | 3180-0010 | Fastener-Nut-Plain-M10-ZP |
| 28 | 1 | 3210-0540 | Fastener-Pin-Roll-M5x40-Black |
| 29 | 1 | 3210-0840 | Fastener-Pin-Roll-M8x40-BK |
| 30 | 3 | 3220-0320 | Fastener-Pin-Split-M3.2×20-ZP |
| 31 | 11 | 3240-0018 | Fastener-Rivet-Blind-Truss Head-3/16x18mm-Aluminium |
| 32 | 6 | 3270-8012 | Fastener-Self Tap-Screw-CSK-8Gx1/2″-Pozi-Stainless |
| 33 | 4 | 3290-0840 | Fastener-Set Screw-Hex-8.8 Grade-M8x40-ZP |
| 34 | 1 | 3290-0850 | Fastener-Set Screw-Hex-8.8 Grade-M8x50-ZP |
| 35 | 1 | 3290-1025 | Fastener-Set Screw-Hex-8.8 Grade-M10x25-ZP |
| 36 | 1 | 3290-1225 | Fastener-Set Screw-Hex-8.8 Grade-M12x25-ZP |
| 37 | 2 | 3290-1240 | Fastener-Set Screw-Hex-8.8 Grade-M12x40-ZP |
| 38 | 2 | 3290-1275 | Fastener-Set Screw-Hex-8.8 Grade-M12x75-ZP |
| 39 | 4 | 3310-2809 | Fastener-Washer-Flat-M8x22x1.5-Grade 316-Stainless |
| 40 | 1 | 3310-5012 | Fastener-Washer-Flat-Heavy-M12x32x3-Galv |
| 41 | 2 | 3310-6008 | Fastener-Washer-Flat-M8-ZP |
| 42 | 6 | 3310-6008 | Fastener-Washer-Flat-M8-ZP |
| 43 | 10 | 3310-6010 | Fastener-Washer-Flat-M10-ZP |
| 44 | 2 | 3310-6012 | Fastener-Washer-Flat-M12-ZP |
| 45 | 1 | 3500-5600 | Frame-Spreader-CDIT300GT-GL |
| 46 | 1 | 3800-1000 | Gearbox-Ferroni-RV10-Ratio 1 to 2.78 |
| 47 | 1 | 3865-3800 | Grip-Handle-7/8″-PVC-Black-Plastic |
| 48 | 1 | 3990-3900 | Guide-Handle-CDIT300/400GT-ZP |
| 49 | 1 | 4050-1500 | Handle-CDIT300/400GT-ZP |
| 50 | 1 | 4050-4250 | Handle-Indicator-CDIT400GT-ZP |
| 51 | 1 | 5050-1600 | Linkage-Clutch-CDIT300/400GT-ZP |
| 52 | 1 | 5050-7960 | Linkage-Shutter-CDIT300GT-ZP |
| 53 | 1 | 5200-6300 | Machined-Key-8×8-Ground Drive Spreaders |
| 54 | 1 | 5200-6500 | Machined-Shaft-Axle-CDIT300GT- ZP |
| 55 | 1 | 5245-3900 | Mount-Handle-CDIT300/400GT-ZP |
| 56 | 1 | 5270-0003 | Nipple-Grease-Straight-Short-M6-ZP |
| 57 | 1 | 6500-7770 | Profiled-Shutter-CDIT300/400 |
| 58 | 1 | 6500-9000 | Profiled-Washer-Spinner Shaft-34.9x67x2mm-Stainless 304 |
| 59 | 1 | 7500-2140 | Rota-Hopper-Spreader-CDIT300 -Yellow-MDPE |
| 60 | 2 | 7500-2590 | Rota-Mudguard-MDPE-1/4 Circle |
| 61 | 1 | 7500-2830 | Rota-Spout-Spreader-CDIT400GT-Yellow-MDPE |
| 62 | 1 | 7970-8200 | Shroud-Spreader CDIT300GT-MDPE-Yellow |
| 63 | 1 | 8200-1010 | Spinner Assembly-Spreader-CDIT300/400-STAINLESS |
| 64 | 1 | 8200-5200 | Spinner-Mount-CDIT300/400/INEX300-ZP |
| 65 | 3 | 8250-1800 | Spring-Compression-Crinkle Plate-ZP |
| 66 | 1 | 8800-3800 | Tow-Coupling-Handle-Double Ended-1 78 x 50mm-ZP |
| 67 | 1 | 9200-8700 | Wheel-Turf-Bearing-18x950x8-4 Ply |
| 68 | 1 | 9200-8900 | Wheel-Turf-Keyed-18x950x8-4 Ply |
Related Products
Take a look at related products below, from matching accessories through to other models and sizes that may be a better fit.
Frequently Asked Questions
Here are some of the things people often ask about this product. If you’d like more help, your local store can talk it through, or you can get in touch with us directly.
It’s suitable for most fertilisers and seed types, including urea.
The stainless-steel Spinner provides an even 18-metre spread for efficient coverage.
With a low centre of gravity and wide 1380 mm wheel track, it offers excellent stability.
The easy pull lever has nine settings, applying up to 140 kg/ha at 10 kph.
The low-sided hopper allows easy filling.
