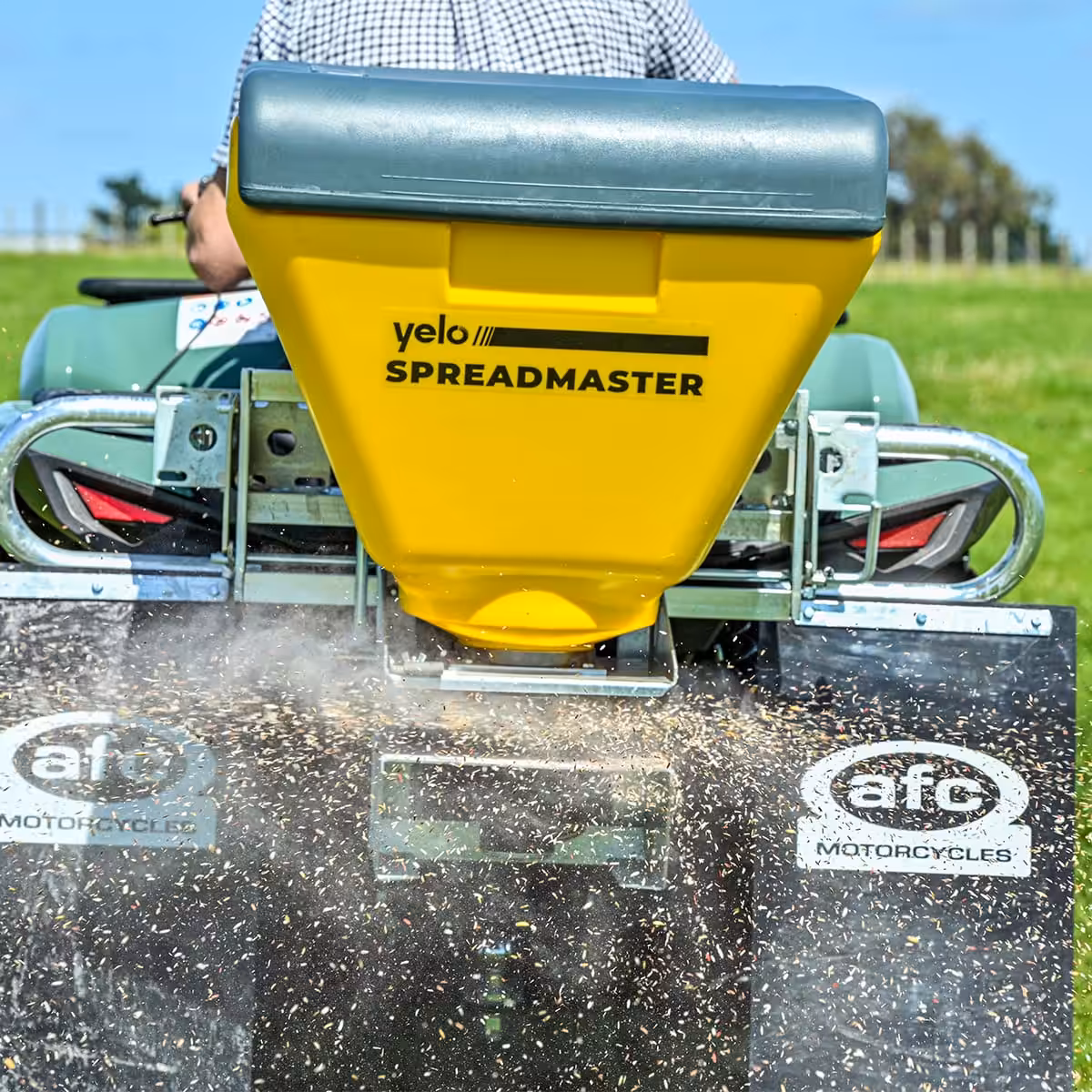

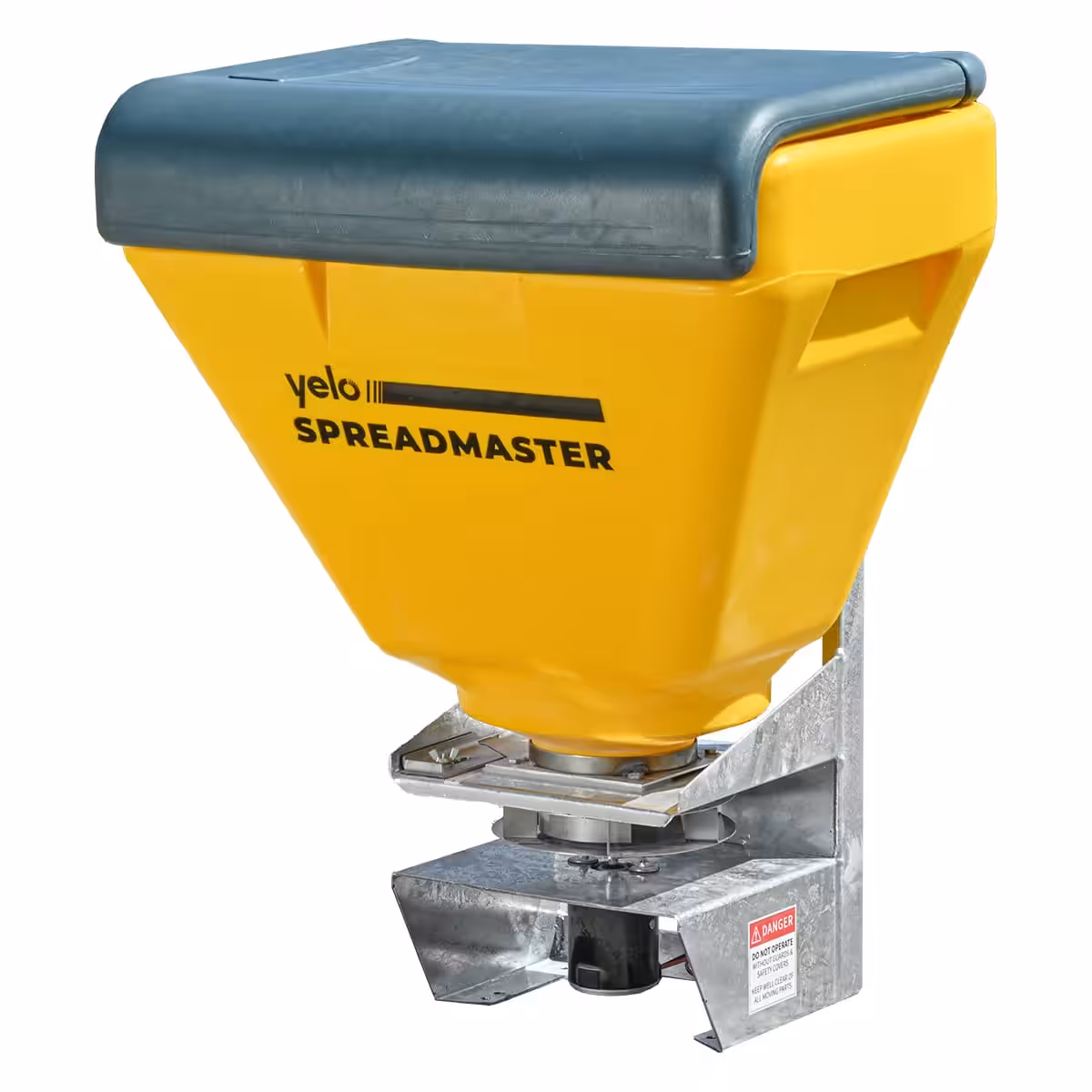

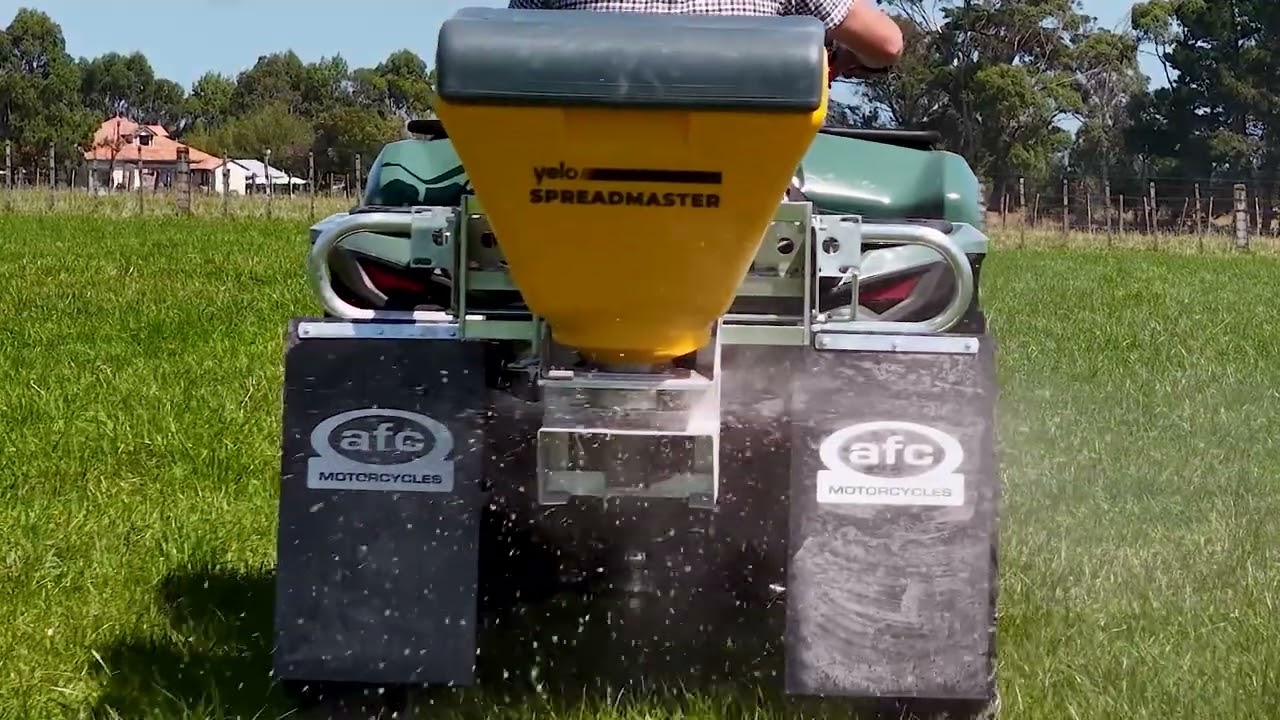

SpreadMaster
Yelo’s SpreadMaster provides practical, reliable, and easy spreading of seed, fertiliser, and powders for improved grass or crop growth.
Just pop it onto the flat deck of your ATV or ute to get started, or purchase our optional QuickSmart Mount attachment system for a faster and sturdy set up for regular use.
Simple controls ensure fast, precise, and even application. Lightweight yet durable, it’s easy to operate and handle, while the large hopper means fewer refills to save time.
- Unique 6 vane stainless spinner disc gives 15m spread width
- Manual lever stainless shutter system up to 50 kg/ha
- Suitable for most seed, fertiliser and powders

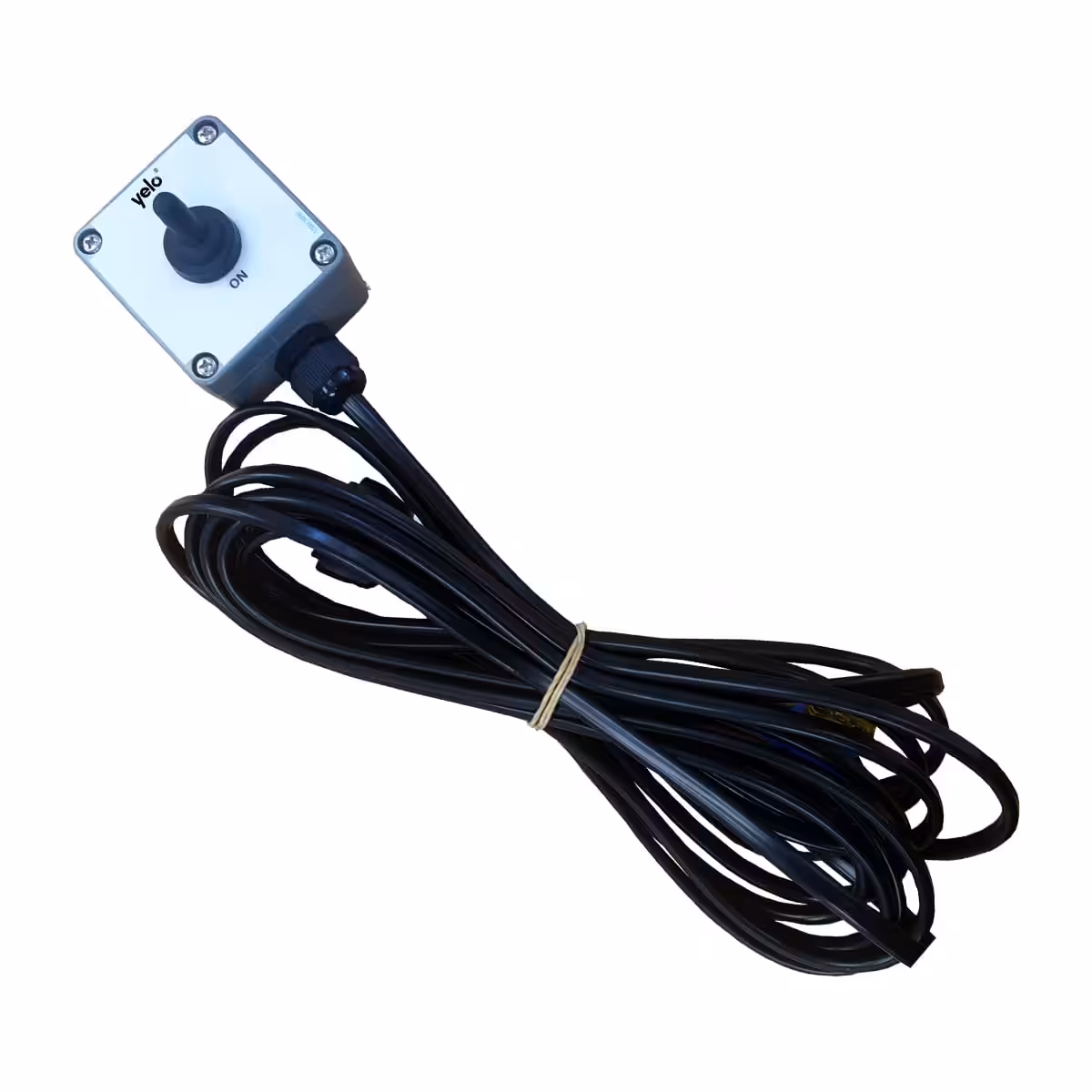

- Remote on/off spinner switch with 3m wiring loom

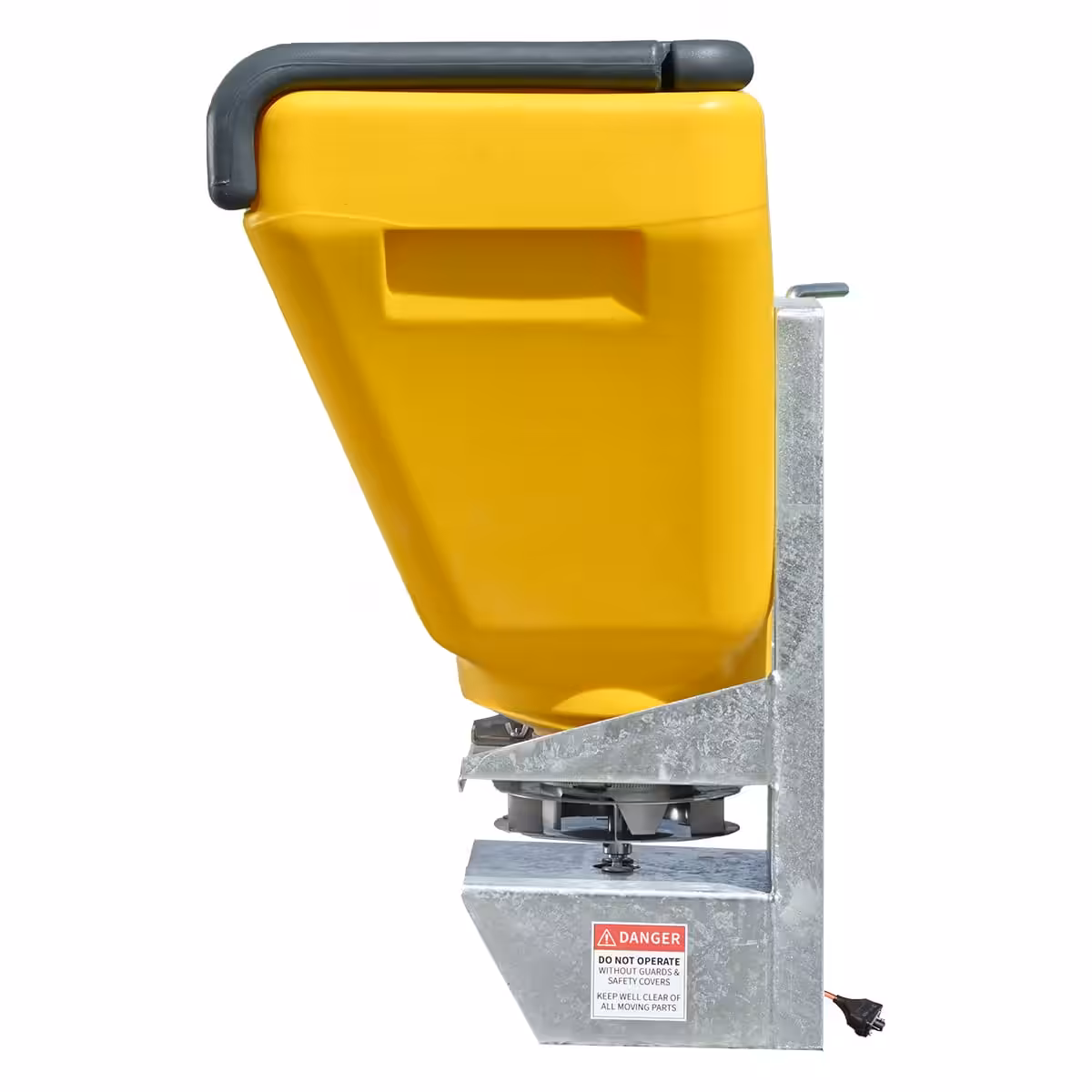

- Galvanised steel frame that mounts onto flatdeck or optional QuickSmart Attachment System
- 70 litre poly hopper with snap shut lid
- 600 mm wide x 780 mm high
- 20 kg weight empty
Downloads

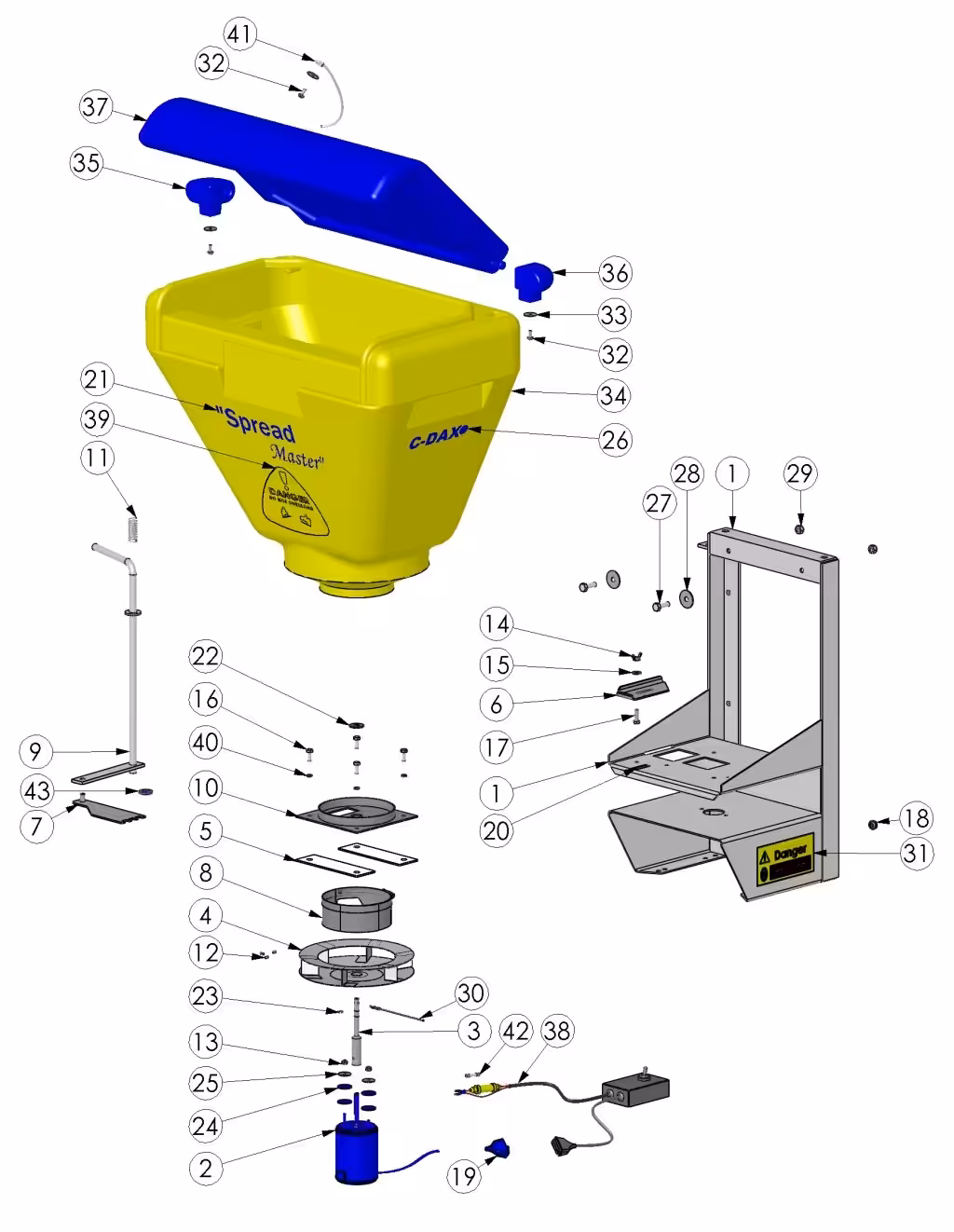

| Item No. | QTY | Part No | Description |
| 1 | 1 | 3500-6000 | Frame-Spreader-Spreadmaster G2-Gl |
| 2 | 1 | 5240-1000 | Motor-12vdc 150w-Spread/Slugmaster |
| 3 | 1 | 5200-7000 | Machined-Shaft-Spinner Drive-Slugspreadmaster-Stainless |
| 4 | 1 | 8200-8300 | Spinner-Spreadmaster-Ss |
| 5 | 2 | 6240-5700 | Plate-Packer-Spreadmaster-Sm70-Umphe |
| 6 | 1 | 6500-1750 | Profiled-Choke-Spreadmaster 62-Stainless |
| 7 | 1 | 7980-7905 | Shutter-Spreadmaster-Incl Pin-Stainless |
| 8 | 1 | 1975-7710 | Chute-Delivery-Spreadmaster-Stainless |
| 9 | 1 | 4050-8000 | Handle-Spreadmaster-SM70-ZP |
| 10 | 1 | 6240-5500 | Plate-Orifice-Spreadmaster-Incl Spigot-Stainless |
| 11 | 1 | 8250-1900 | Spring-Compression-Lock-Superline-Spreadmaster-ZP |
| 12 | 3 | 3010-0406 | Fastener-Grub Screw-Socket Head-M4X6-Stainless |
| 13 | 2 | 3150-5100 | Fastener-Nut-Nuloc-3/16-UNF-ZP |
| 14 | 1 | 3200-0206 | Fastener-Nut-Wing-M6-ZP |
| 15 | 1 | 3310-6006 | Fastener-Washer-Flat-M6-ZP |
| 16 | 4 | 3290-0616 | Fastener-Set-Screw-Hex-8.8 Grade-M6x16-ZP |
| 17 | 1 | 3290-0620 | Fastener-Set-Screw-Hex-8.8 Grade-M6x20-ZP |
| 18 | 1 | 3880-0006 | Grommet-Insulating-6×11.0mm-Rubber |
| 19 | 1 | 6250-3001 | Plug-Electrical-2 Pin-Male-20 Amp-With Cover |
| 20 | 1 | 4600-1320 | Label-Calibration-Spreadmaster |
| 21 | 1 | 4600-6640 | Label-Name-Spreadmaster-Meyer |
| 22 | 1 | 9100-3020 | Washer-Flat-Himould-9IDx25ODx2mm-Black-Plastic |
| 23 | 1 | 1980-0008 | Circlip-External-8mm-DIN471-Stainless |
| 24 | 4 | 3700-9210 | Gasket-Washer-5x25x1.6-Black-Neoprene |
| 25 | 2 | 3310-9210 | Fastener-Washer-Glat-3/16″x7/8″x1.5-Grade 304-Stainless |
| 26 | 2 | 4600-6030 | Label-Name-Small-55×100-Vinyl |
| 27 | 2 | 3290-0825 | Fastener-Set Screw-Hex-8.8 Grade-M8x25-ZP |
| 28 | 2 | 3310-3008 | Fastner-Washer-Flat-Fender-M8x32x1.5-ZP |
| 29 | 2 | 3170-0008 | Fastener-Nut-Nyloc-M8-ZP |
| 30 | 1 | 3410-1100 | Rail-Agitator-Spreadmaster G2-Including Clips |
| 31 | 2 | 4600-2000 | Label-Danger-Keep-Clear |
| 32 | 3 | 3090-0512 | Fastener-Machine-Screw-Pan-M5x12-Philips-Stainless |
| 33 | 3 | 3310-9210 | Fastener-Washer-Flat-3/16″x7/8″x1.5-Grade 305-Stainless |
| 34 | 1 | 7500-2220 | Rota-Hopper-Spreader-Spreadmaster SM70-Yellow-MDPE |
| 35 | 1 | 7500-2000 | Rota-Hinge-LH-SM70/75,Magmaster-MDPE |
| 36 | 1 | 7500-2010 | Rota-Hinge-RH-SM70/75,Magmaster-MDPE |
| 37 | 1 | 7500-2520 | Rota-Lip-Hopper-SM70/75L,Magmaster-MDPE |
| 38 | 1 | 1500-6600 | Cable-Electrical-Loom-Spreadmaster-Control Box-1.50M |
| 39 | 1 | 4600-5180 | Label-MIG-Danger/Overload |
| 40 | 4 | 3330-8006 | Fastener-Washer-Spring-M6-ZP |
| 41 | 1 | 2230-1100 | Cord-Arrestor-Hinged Spreader Lid |
| 42 | 1 | 3600-4000 | Fuse-Link-Standard Blow-20 Amp-1/4″x1 1/4″-Glass |
| 43 | 1 | 3700-9120 | Gasket-Washer-12.5x24x3.2-Blue-Sanoprene |
Related Products
Take a look at related products below, from matching accessories through to other models and sizes that may be a better fit.
Frequently Asked Questions
Here are some of the things people often ask about this product. If you’d like more help, your local store can talk it through, or you can get in touch with us directly.
It’s suitable for spreading most seed, fertiliser and powders, making it a versatile tool for everyday farm use.
Depending on the product, the 6-vane stainless spinner delivers an even spread width of up to 15 metres.
The manual stainless shutter allows precise adjustment up to 50 kg/ha, helping reduce waste.
Yes. The 70 litre poly hopper with its wide top makes it easy to plan refills.

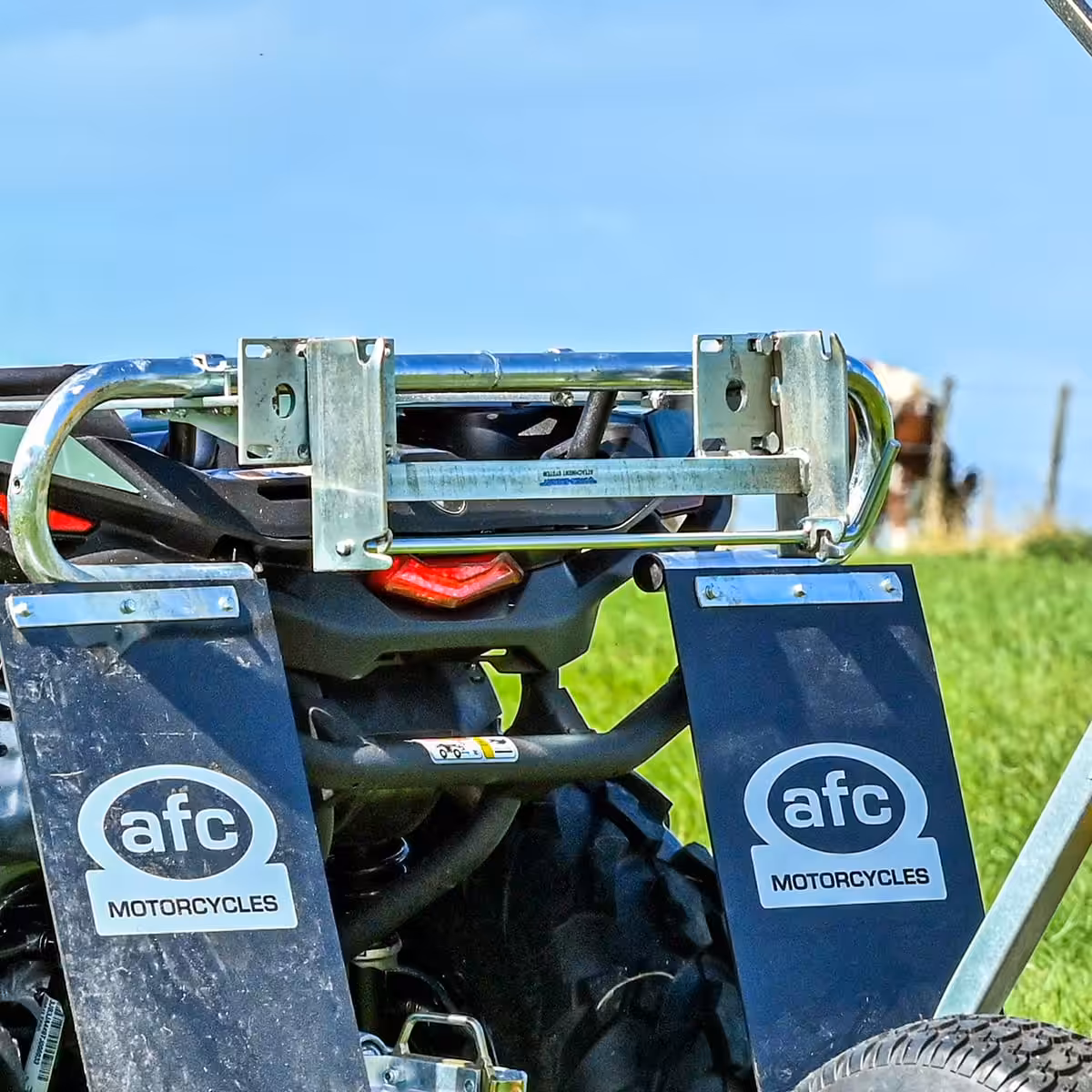

It mounts to vehicles in as little as 30 seconds using the optional QuickSmart Attachment System. Unobtrusive mounting means it can remain on ATV/RTVs without causing disruption during other farming jobs. It features a remote on/off spinner switch with a 3m wiring loom.
The SpreadMaster comes with 3.0m wiring loom/switch box to connect straight to a 12V battery.
Yes, you can gain another 3 metres by purchasing Part Number 1500-4700 3.0m Extension lead.
Yes it comes fully assembled in a box.

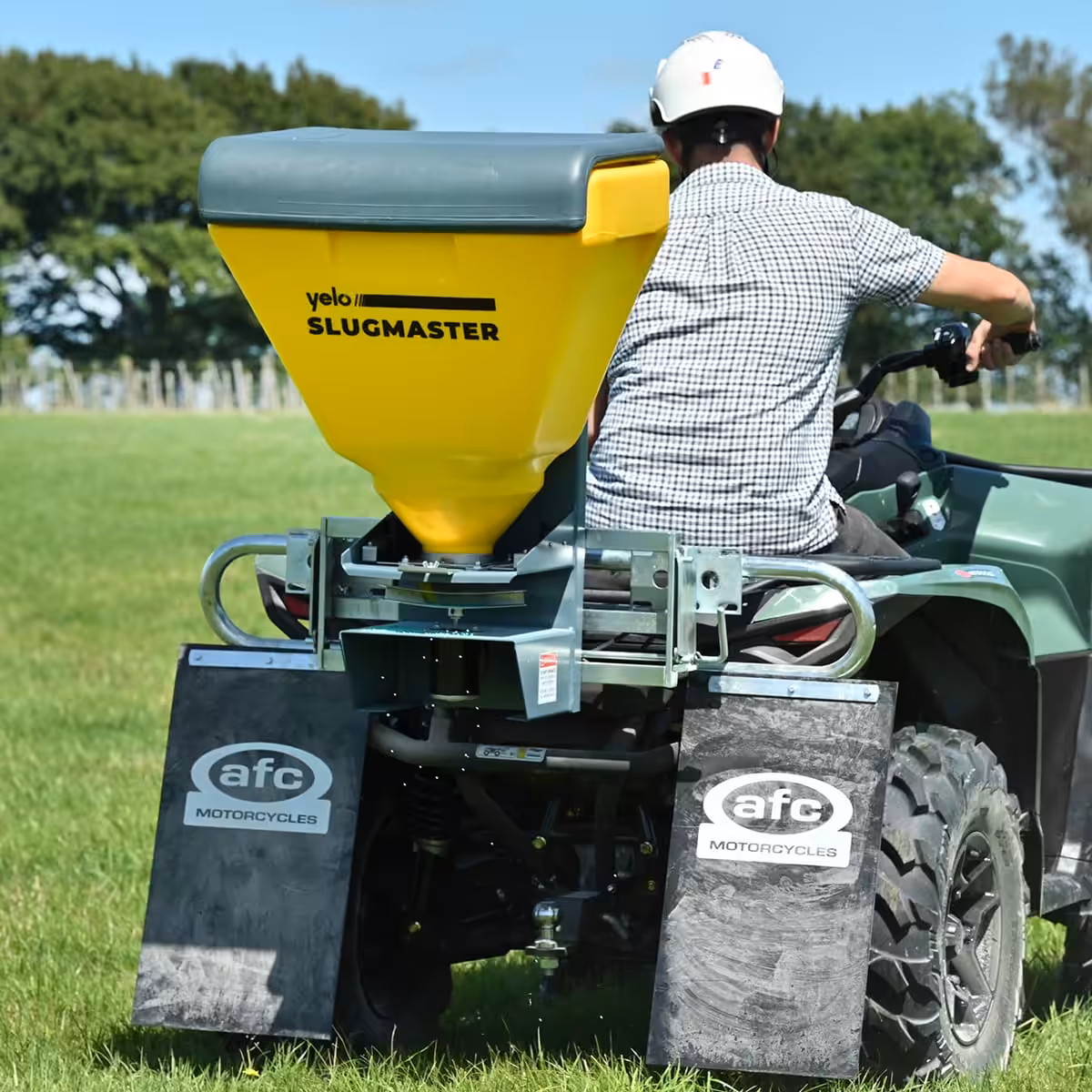

The SlugMaster is designed to do lower application rates.
