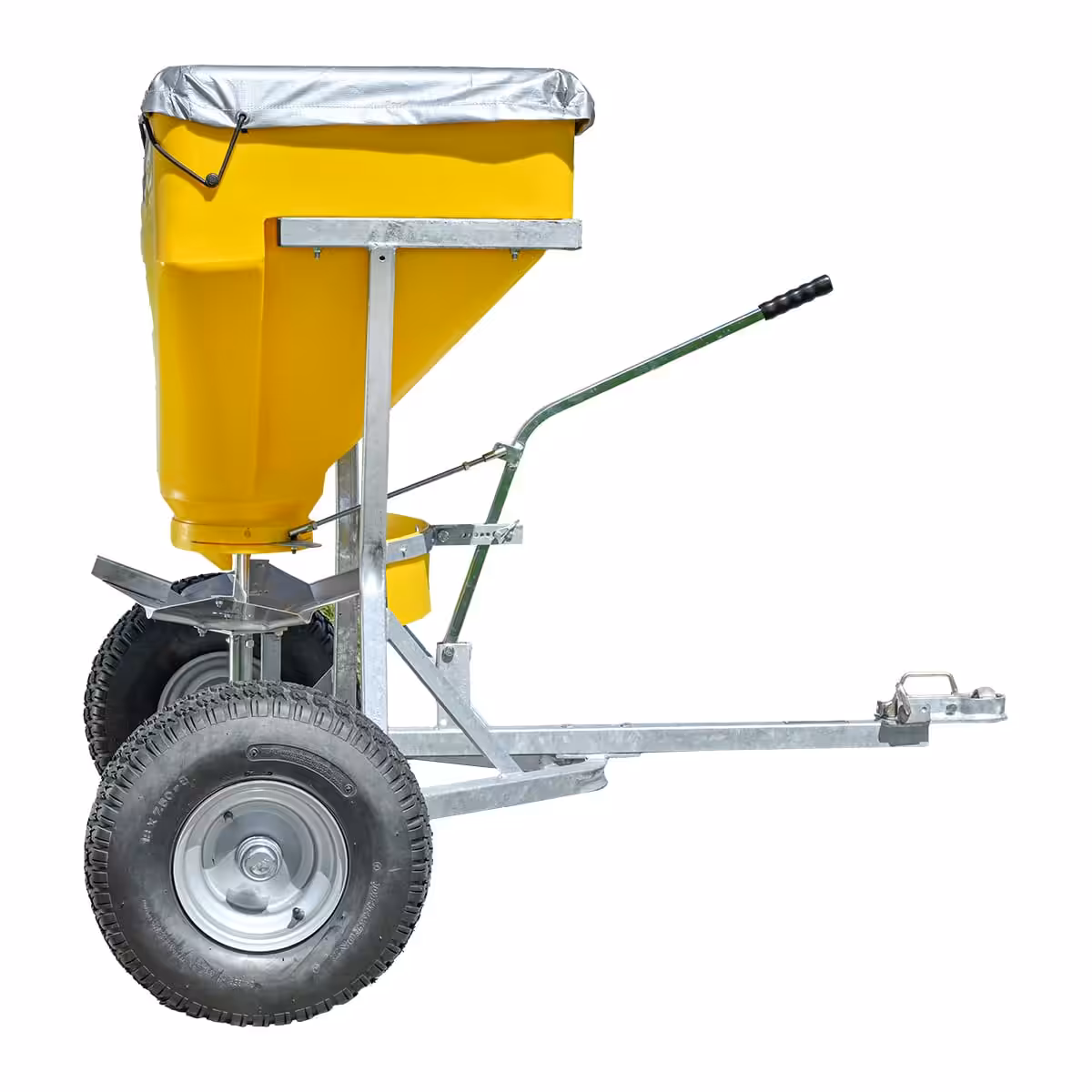

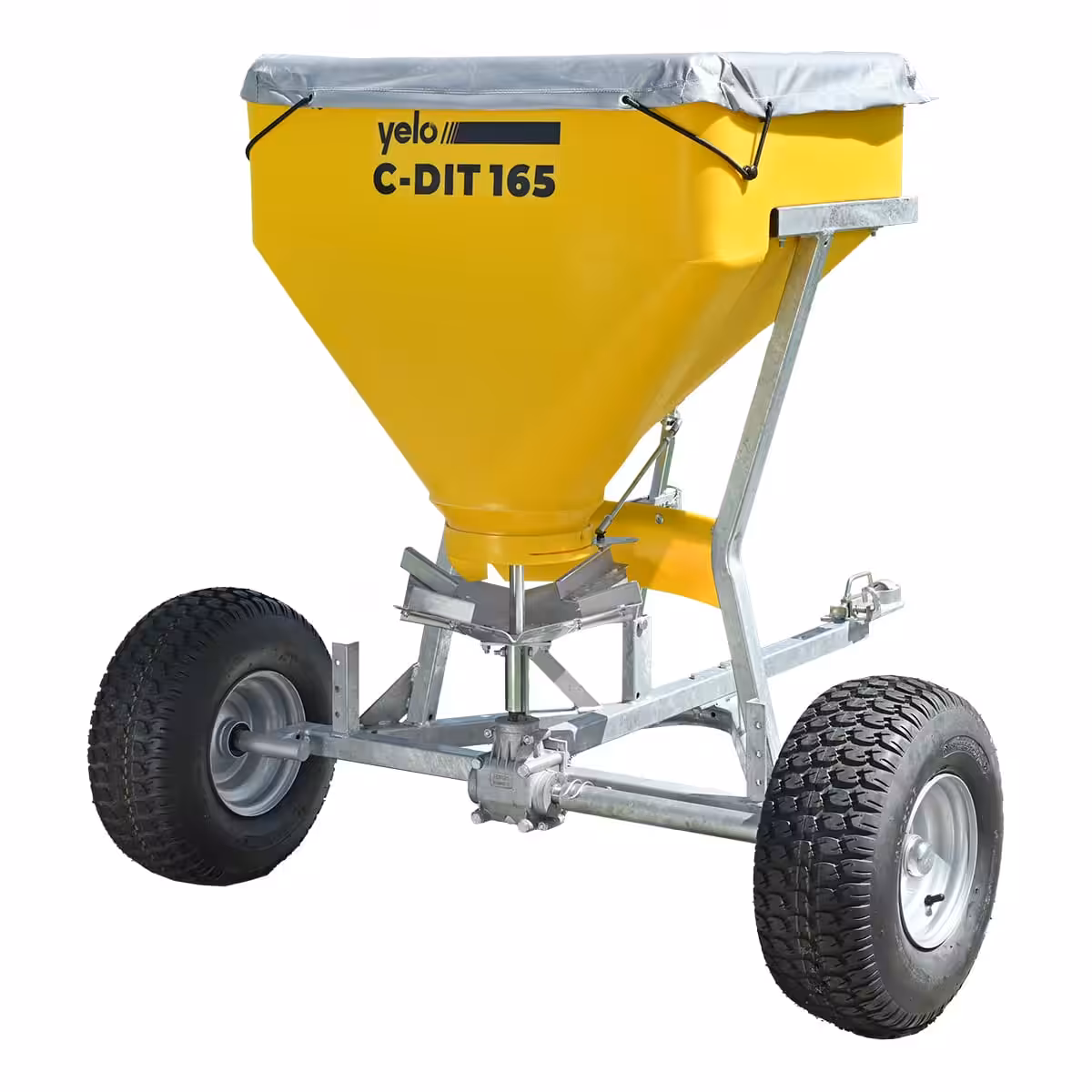

C-DIT 165
Yelo’s C DIT 165 makes spreading mag powder, seed or fertiliser easy, giving you one handy machine that can switch jobs as the season changes. Use it to spread magnesium to help manage grass staggers caused by magnesium deficiency in livestock, or load it up with seed or fert to give your pasture a lift. It also comes with a handy PVC cover to keep your load protected.
Lightweight and easy to tow, it hooks on behind your quad, RTV or ute.
Our optional mudguard kit helps keep mud and debris out of the hopper and off the machine, tow vehicle, and operator. A simple addition that helps keep things cleaner when spreading in muddy conditions.
- Suitable for seed, fertiliser and magnesium
- Aggressive agitation prevents ‘bridging’
- Spinner with 12m spread width (at 10 kph)
- Manual easy pull open/shut lever
- Removable pin on drive axle
- Wide wheel track for stability on uneven terrain
- 165 litre poly hopper with PVC lid
- 75 kg weight empty
- 1340 mm wheel track width
- Mudguard Kit / Part No 1300 – 6810
Downloads

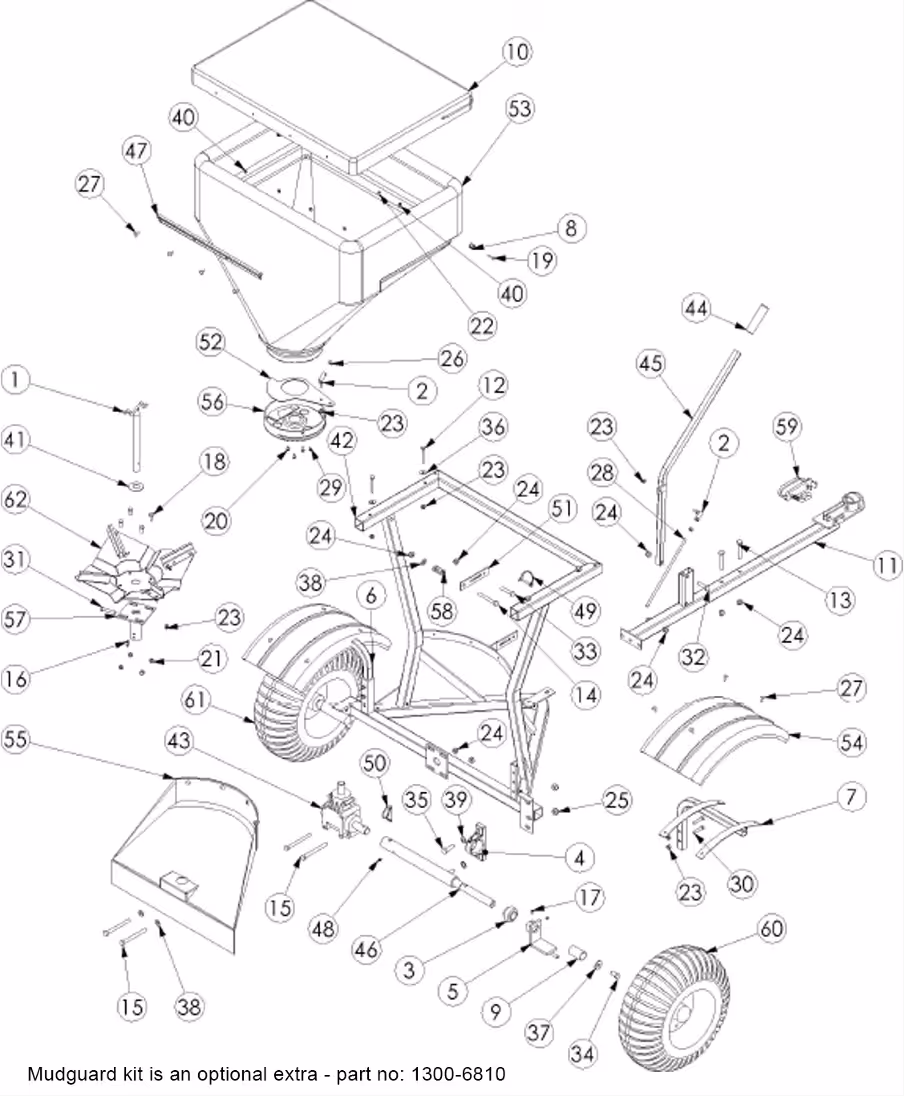

| Item No. | QTY | Part No | Description |
| 1 | 1 | 1036-8223 | Agitator-Spreader-165L/Magmaster 165-SS |
| 2 | 2 | 1110-2308 | Ball-End-Internal Thread-M8-Zinc Plated |
| 3 | 1 | 1140-1200 | Bearing-Ball-Pillow Block-Drive Axle-Spreaders |
| 4 | 1 | 1140-4000 | Bearing-Housing-Pillow Block-Drive Axle-Spreaders |
| 5 | 1 | 1300-4100 | Bracket-Drive-130L/MAG/165L-Spreaders-ZP |
| 6 | 1 | 1300-6800 | Bracket-Mudguard-CDIT300/400/MM165-LH-GL |
| 7 | 1 | 1300-6801 | Bracket-Mudguard-CDIT300/400/MM165-RH-GL |
| 8 | 2 | 1455-8800 | Button-Ute Cover-Bungy Cord Retain-Black-Plastic |
| 9 | 1 | 2250-1000 | Cover-Axle Shaft-Spreader 130L/165L/Magmaster-PVC |
| 10 | 1 | 2250-4150 | Cover-Hopper-Silver Fabric-Spreader130/165 |
| 11 | 1 | 2550-8203 | Drawbar-Spreader 165L/Magmaster 165-GL |
| 12 | 4 | 2810-0860 | Fastener-Bolt&Nut-Hex-304 Grade-M8x60-Stainless |
| 13 | 2 | 2840-1065 | Fastener-Bolt-Hex-8.8 Grade-M10x65-ZP |
| 14 | 1 | 2840-1080 | Fastener-Bolt&Nut-Hex-8.8 Grade-M10x80-ZP |
| 15 | 4 | 2840-1110 | Fastener-Bolt&Nut-Hex-8.8 Grade-M10x110-ZP |
| 16 | 2 | 3010-0810 | Fastener-Grub Screw-Socket Head-M8x10-Stainless |
| 17 | 2 | 3010-5200 | Fastener-Grub Screw-Socket Head-3/8×3/8-Stainless |
| 18 | 4 | 3075-0820 | Fastener-Set-Screw-Hex-304 Grade-M8x20-Stainless |
| 19 | 2 | 3090-0200 | Fastener-Machine-Screw-3/16″x1″-Slot-Stainless |
| 20 | 3 | 3110-0512 | Fastener-Machine-Screw-Pan-M5x12-Pozi-ZP |
| 21 | 4 | 3130-0108 | Fastener-Nut-Nyloc-M8-Stainless Steel |
| 22 | 2 | 3160-5101 | Fastener-Nut-Nyloc-3/16 UNC-Stainless |
| 23 | 11 | 3170-0008 | Fastener-Nut-Nyloc-M8-ZP |
| 24 | 9 | 3170-0010 | Fastener-Nut-Nyloc-M10-ZP |
| 25 | 2 | 3170-0012 | Fastener-Nut-Nyloc-M12-ZP |
| 26 | 2 | 3180-0008 | Fastener-Nut-Plain-M8-ZP |
| 27 | 16 | 3240-0018 | Fastener-Rivet-Blind-Truss Head-3/16x18mm-Aluminium |
| 28 | 1 | 7400-8100 | Rod-Threaded-165 Linkage-ZP |
| 29 | 2 | 3270-8012 | Fastener-Self Tap-Screw-CSK-8Gx1/2″-Pozi-Stainless |
| 30 | 4 | 3290-0840 | Fastener-Set Screw-Hex-8.8 Grade-M8x40-ZP |
| 31 | 1 | 3290-0850 | Fastener-Set Screw-Hex-8.8 Grade-M8x50-ZP |
| 32 | 1 | 3290-1040 | Fastener-Set Screw-Hex-8.8 Grade-M10x40-ZP |
| 33 | 1 | 3290-1050 | Fastener-Set Screw-Hex-8.8 Grade-M10x50-ZP |
| 34 | 1 | 3290-1225 | Fastener-Set Screw-Hex-8.8 Grade-M12x25-ZP |
| 35 | 2 | 3290-1240 | Fastener-Set Screw-Hex-8.8 Grade-M12x40-ZP |
| 36 | 4 | 3310-2809 | Fastener-Washer-Flat-M8x22x1.5-Grade 316-Stainless |
| 37 | 1 | 3310-5012 | Fastener-Washer-Flat-Heavy-M12x32x3-Galv |
| 38 | 3 | 3310-6010 | Fastener-Washer-Flat-M10-ZP |
| 39 | 2 | 3310-6012 | Fastener-Washer-Flat-M12-ZP |
| 40 | 6 | 3310-9200 | Fastener-Washer-Flat-3/16″x1/2″x1.5-Grade 304-Stainless |
| 41 | 1 | 3310-9750 | Fastener-Washer-Flat-23.5×2″x1.5-Grade 304-Stainless |
| 42 | 1 | 3500-5305 | Frame-Spreader-MM/In-Ex 165L-GL |
| 43 | 1 | 3800-2000 | Gearbox-Ferroni-RV12-2-6-Ratio 1 to 3.25 |
| 44 | 1 | 3865-3800 | Grip-Handle-7/8″-PVC-Black-Plastic |
| 45 | 1 | 4050-8105 | Handle-Spreader 165L/Mag 165-ZP |
| 46 | 1 | 5200-6700 | Machined-Axle-Gearbox Drive-Magmaster-Black |
| 47 | 1 | 5245-4010 | Mount-Hopper Cover-Spreader 130L/165L/Magmaster 165-AL |
| 48 | 1 | 5270-0003 | Nipple-Grease-Straight-Short-M6-ZP |
| 49 | 1 | 6100-4820 | Pin-Locking-6x50mm-ZP |
| 50 | 1 | 6100-4840 | Pin-Locking-8x45mm-Snapon Pipe-ZPG |
| 51 | 1 | 6500-4201 | Profiled-Index-Plate-MAG/130L/165L Spreader-ZP |
| 52 | 1 | 6500-7770 | Profiled-Shutter-CDIT300/400 |
| 53 | 1 | 7500-2185 | Rota-Hopper-Spreader-Magmaster 165L-Yellow-MDPE |
| 54 | 2 | 7500-2590 | Rota-Mudguard-MDPE-1/4 Circle |
| 55 | 1 | 7500-2705 | Rota-Shroud-Spreader Magmaster 165L-Yellow-MDPE |
| 56 | 1 | 7500-2830 | Rota-Spout-Spreader-CDIT400GT-Yellow-MDPE |
| 57 | 1 | 8250-5305 | Spinner-Mount-Spreader 165L/Magmaster 165-ZP |
| 58 | 1 | 8250-1800 | Spring-Compression-Crinkle Plate-ZP |
| 59 | 1 | 8800-3800 | Tow-Coupling-Handle-Double Ended-1 7/8″ x 50mm-ZP |
| 60 | 1 | 9200-8610 | Wheel-Turf- DRILLED-DRIVE -18x750x8-Tubeless |
| 61 | 1 | 9200-8600 | Wheel-Turf-Bearing-18x750x8-Tubeless |
| 62 | 1 | 8200-1030 | Spinner Assembly-Spreader-Magmaster 165-SS |
Related Products
Take a look at related products below, from matching accessories through to other models and sizes that may be a better fit.
Frequently Asked Questions
Here are some of the things people often ask about this product. If you’d like more help, your local store can talk it through, or you can get in touch with us directly.
It’s suitable for applying seed, fertiliser, and magnesium.
Aggressive agitation stops bridging, ensuring a smooth, consistent flow.
The spinner delivers an even 12-metre spread at 10 kph.
Yes, the 1340 mm wide wheel track provides excellent stability.
Manual open/shut lever and removable drive axle pin make it simple to use and service.
The axle shaft has a removable pin which engages the spinner.
