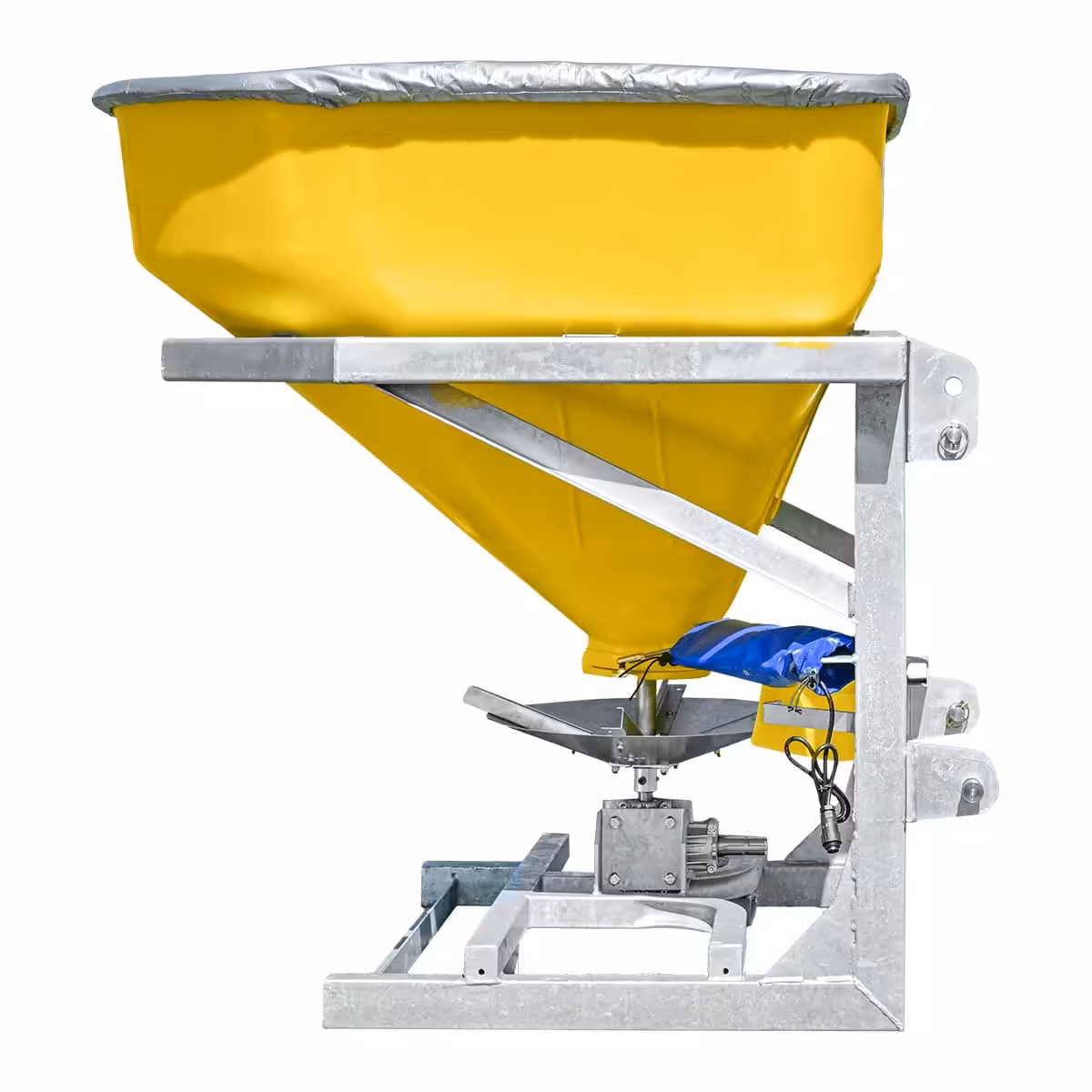

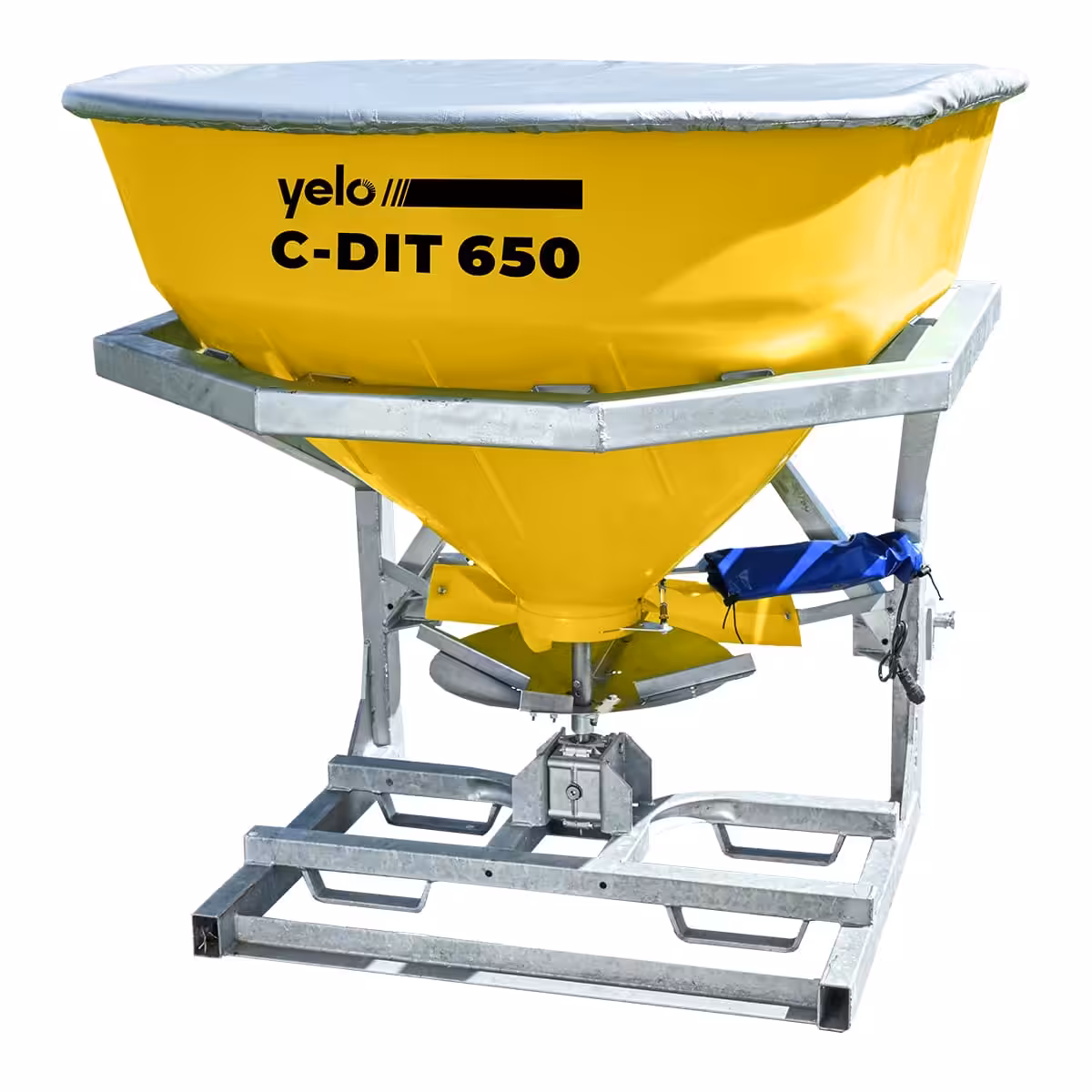

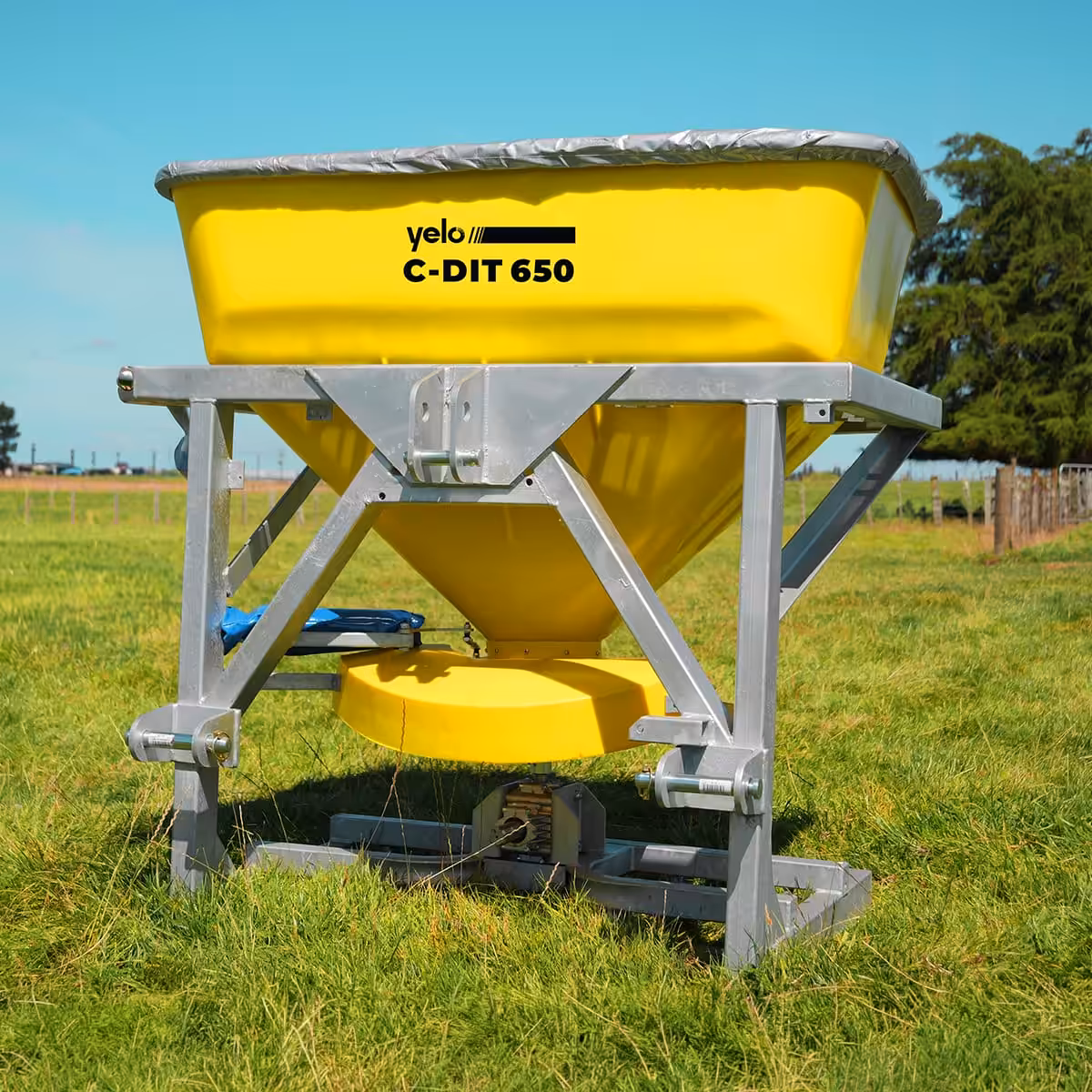

C-DIT 650 Linkage
The Yelo C DIT 650 Linkage is designed to make growing better grass straightforward and efficient. With a 650 litre poly hopper sized to suit half tonne urea bags, it reduces refill time and keeps you working longer between stops.
Mounted directly to your tractor linkage, it improves weight balance and stability. The super strong galvanised frame surrounds a custom designed hopper that helps minimise fertiliser compaction, keeping product flowing freely for consistent application. A unique stainless steel spinner disc delivers smooth, even coverage across the paddock.
This model also includes the spreader rate remote control unit that gives greater accuracy while spreading. Open, close and adjust with ease from the tractor seat, making operation quicker, safer and more precise.
Built tough and made to work, the C DIT 650 Linkage is a practical fertiliser spreading solution for farmers who want capacity, control and reliable performance in one machine.
- 3 point linkage
- Includes a remote control unit as standard
- Spinner with up to 18m spread width
- Applies up to 115 kg/ha (urea at 8 kph)
- Super strong galvanised frame for maximum strength
- Unique hopper design minimises fertiliser compaction for consistently easy spreading
- Unique stainless steel spinner disc
- 650 litre poly hopper with PVC cover (450kg urea)
- 152kg weight empty
- PTO Drive
- 1400mm wide
- 1400mm high
Downloads

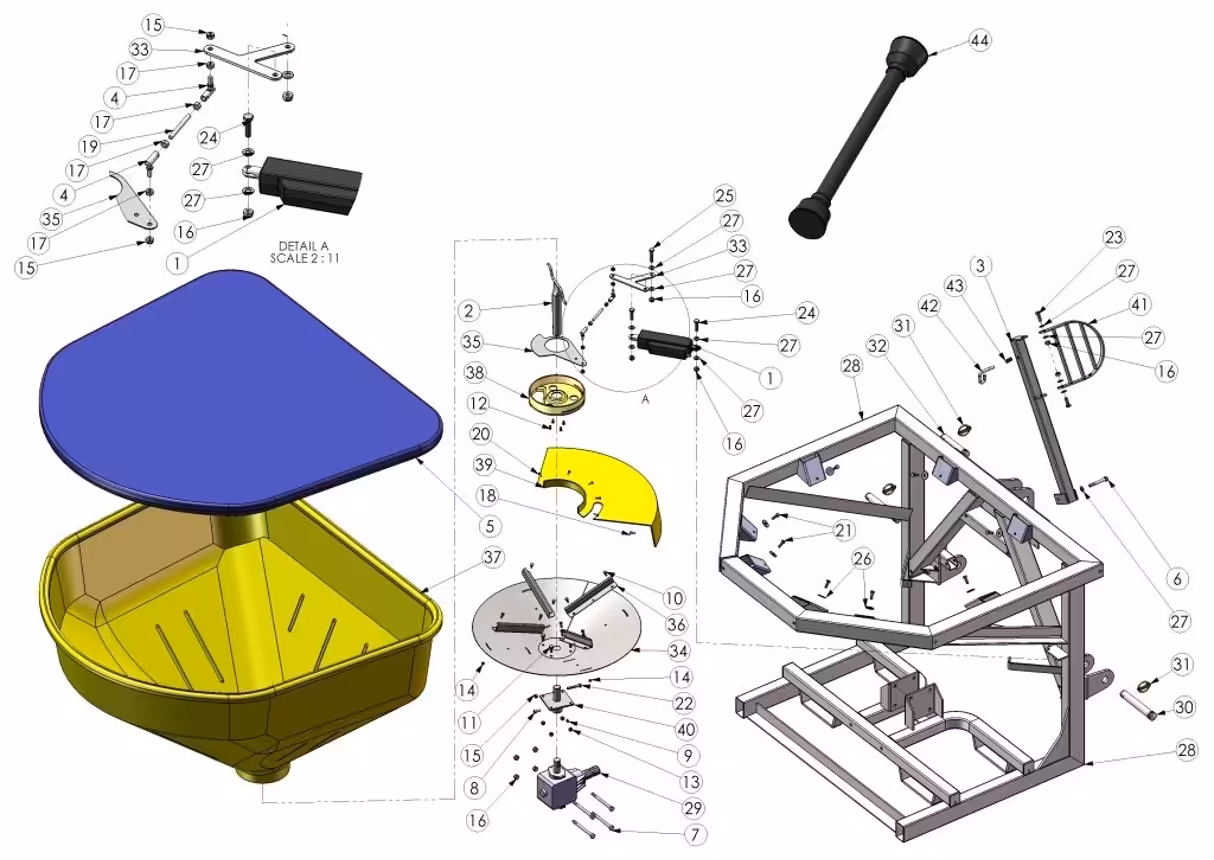

| Item No. | QTY | Part No | Description |
| 1 | 1 | 1010-2391 | Actuator-Electrical-Smart Control-With Plug fitted |
| 2 | 1 | 1036-8240 | Agitator-Spreader-CDIT300/400-In-Ex300/400-SS |
| 3 | 1 | 1072-7500 | Arm-Step-Goldline-800/1000L-GL |
| 4 | 2 | 1110-2308 | Ball-End-Internal Thread-M8-Zinc Plated |
| 5 | 1 | 2250-4106 | Cover-Hopper-Fabric-Spreader CDIT650 |
| 6 | 1 | 2840-1075 | Fastener-Bolt&Nut-Hex-8.8 Grade-M10x75-ZP |
| 7 | 4 | 2840-1120 | Fastener-Bolt&Nut-Hex-8.8 Grade-M10x120-ZP |
| 8 | 1 | 2880-0816 | Fastener-Cap Head-Allen Screw-M8x16-316-Stainless |
| 9 | 1 | 3010-0810 | Fastener-Grub Screw-Socket Head-M8x10-Stainless |
| 10 | 8 | 3075-0616 | Fastener-Set-Screw-Hex-304 Grade-M6x16-Stainless |
| 11 | 4 | 3075-0820 | Fastener-Set-Screw-Hex-304 Grade-M8x20-Stainless |
| 12 | 4 | 3110-0512 | Fastener-Machine-Screw-Pan-M5x12-Pozi-ZP |
| 13 | 4 | 3130-0108 | Fastener-Nut-Nyloc-M8-Stainless Steel |
| 14 | 8 | 3170-0006 | Fastener-Nut-Nyloc-M6-ZP |
| 15 | 11 | 3170-0008 | Fastener-Nut-Nyloc-M8-ZP |
| 16 | 10 | 3170-0010 | Fastener-Nut-Nyloc-M10-ZP |
| 17 | 4 | 3180-0008 | Fastener-Nut-Plain-M8-ZP |
| 18 | 2 | 3240-0018 | Fastener-Rivet-Blind-Truss Head-3/16x18mm-Aluminium |
| 19 | 1 | 3250-0008 | Fastener-Rod-Threaded-4.6 Grade-M8-ZP |
| 20 | 5 | 3280-1034 | Fastener-Self Tap-Screw-Pan-10Gx3/4″-Pozi-ZP |
| 21 | 8 | 3290-0825 | Fastener-Set Screw-Hex-M8x25-316-SS |
| 22 | 1 | 3290-0850 | Fastener-Set Screw-Hex-8.8 Grade-M8x50-ZP |
| 23 | 2 | 3290-1030 | Fastener-Set Screw-Hex-8.8 Grade-M10x30-ZP |
| 24 | 2 | 3290-1040 | Fastener-Set Screw-Hex-8.8 Grade-M10x40-ZP |
| 25 | 1 | 3290-1050 | Fastener-Set Screw-Hex-8.8 Grade-M10x50-ZP |
| 26 | 8 | 3310-2810 | Fastener-Washer-Flat-M10x32x2.5-Grade 316-Stainless |
| 27 | 13 | 3310-6010 | Fastener-Washer-Flat-M10-ZP |
| 28 | 1 | 3500-0290 | Frame-3PL-CDIT650-GL |
| 29 | 1 | 3800-1210 | Gearbox-Ferroni-RV010-L-Ratio 1:1-1-3/8 PTO input-25mm Output |
| 30 | 2 | 6100-1100 | Pin-Bottom Link-3 Point Linkage-ZPG |
| 31 | 3 | 6100-4700 | Pin-Linch-3 Point Linkage-ZPG |
| 32 | 1 | 6100-8400 | Pin-Top Link-3 Point Linkage-ZPG |
| 33 | 1 | 6500-1055 | Profiled-Actuator Pivot Plate-CDIT650-Stainless Steel |
| 34 | 1 | 6500-2165 | Profiled-Disc-Spinner-Base-FORMED-CDIT 1300-Spreader-Stainless |
| 35 | 1 | 6500-7770 | Profiled-Shutter-CDIT300/400,165L-Spreader-Stainless |
| 36 | 4 | 6500-8955 | Profiled-Vane-Spinner-Spreader-CDIT 1300-Stainless |
| 37 | 1 | 7500-2166 | Rota-Hopper-Spreader-CDIT650-Yellow-MDPE |
| 38 | 1 | 7500-2830 | Rota-Spout-Spreader-CDIT400GT-Yellow-MDPE |
| 39 | 1 | 7970-8120 | Shroud-Spreader CDIT650-MDPE-Yellow |
| 40 | 1 | 8200-5200 | Spinner-Mount-CDIT300/400/INEX300-ZP |
| 41 | 1 | 8400-3800 | Step-Goldline-800/1000L-GL |
| 42 | 1 | 8800-1720 | Tow-Coupling-Pin-P-Catch-10mm-ZPG |
| 43 | 1 | 8800-1730 | Tow-Coupling-Spring-Compression-ZP |
| 44 | 1 | 2600-1000 | Drive Shaft-16HP-1000mm Long-Sheilded |
Related Products
Take a look at related products below, from matching accessories through to other models and sizes that may be a better fit.
Frequently Asked Questions
Here are some of the things people often ask about this product. If you’d like more help, your local store can talk it through, or you can get in touch with us directly.
Mounting directly to the tractor improves weight balance, stability, and frees up trailer space.
It’s designed primarily for fertiliser, including urea, with a hopper sized to suit half-tonne bags.
The custom hopper design reduces fertiliser compaction, while the stainless-steel spinner delivers smooth, even coverage.
It comes standard with in-cab electric remote control for easy operation and improved accuracy.
The electric remote control removes the need to reach out behind the tractor, making operation quicker and safer. Spinner is engaged via PTO shaft.
A PTO, or Power Take Off shaft, transfers power directly from the tractor engine to the spreader. The PTO shaft is supplied with the spreader and connects to your tractor to drive key components such as the spinner and agitator. Because the spinner discs are powered directly by the tractor, their speed remains consistent regardless of ground speed. This delivers a more even spread pattern, supports higher application rates, and performs better when handling heavier or bulk fertiliser. A PTO driven system is ideal when accuracy and consistency are important, especially across larger areas or varying terrain, as it maintains steady output even when travel speed changes.
